RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot

Product Description

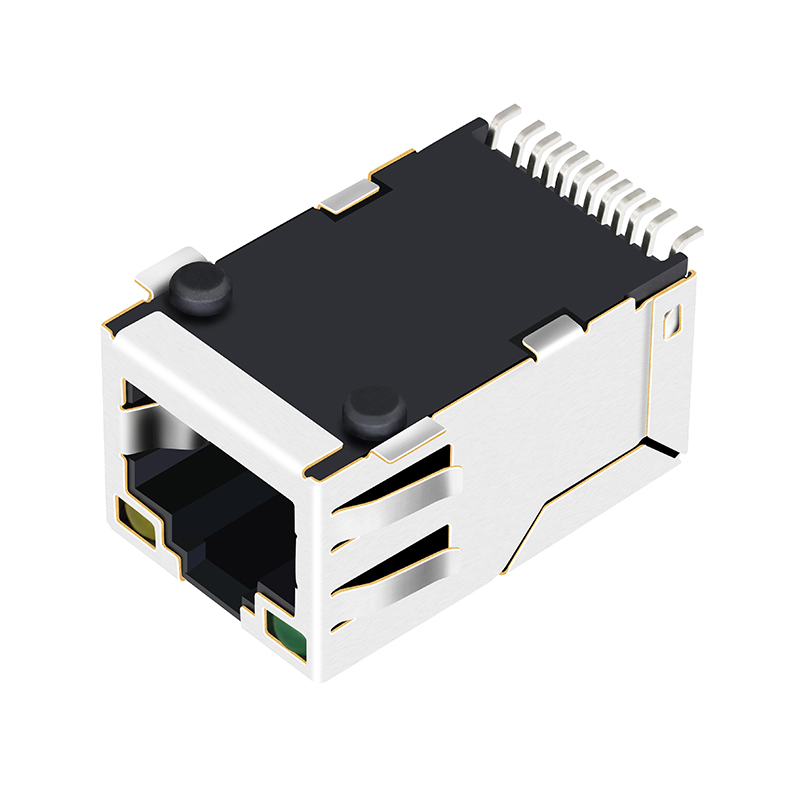

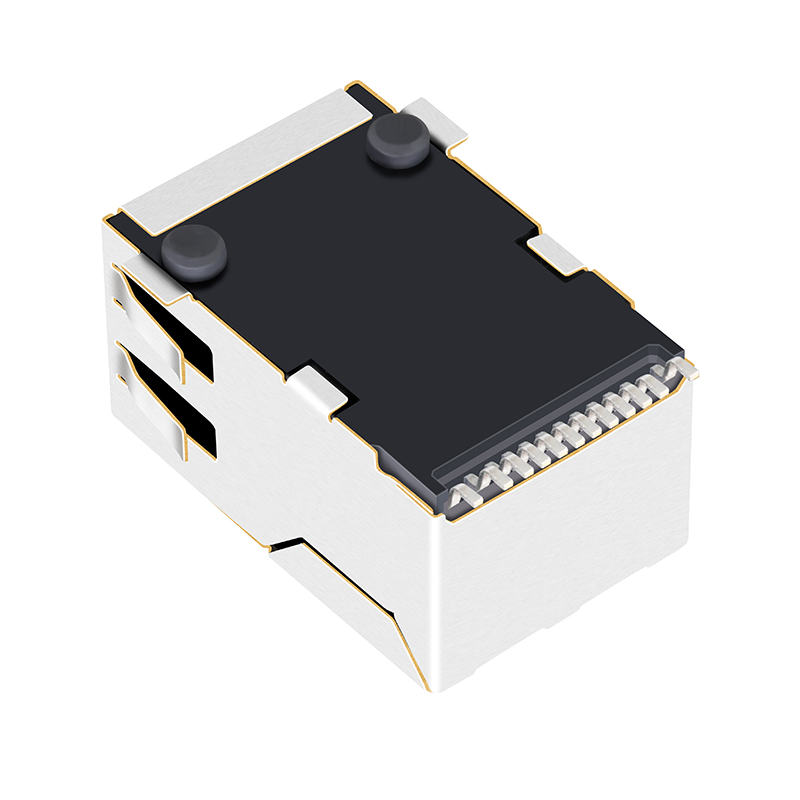

RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female Overview
Products Description
Item RJ45 Female Connector
Bothhand Part Number HR961160C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

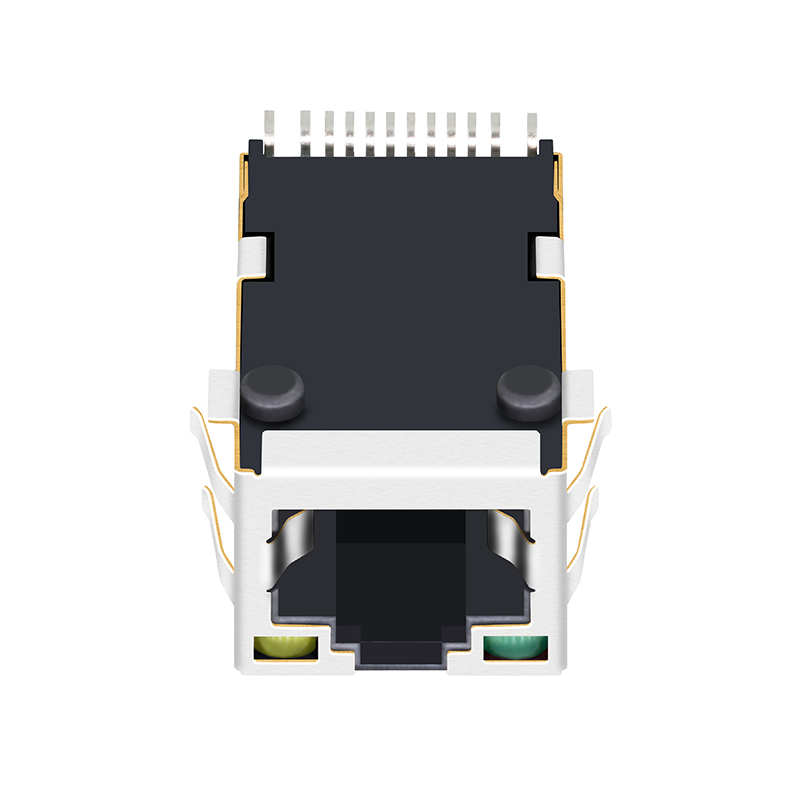

RJ45 Front View
RJ45 Side View
RJ45 Technical Drawing 1
RJ45 Technical Drawing 2
RJ45 Technical Drawing 3
RJ45 Technical Drawing 4
Explore Our Comprehensive Ethernet Connection & Interface Components

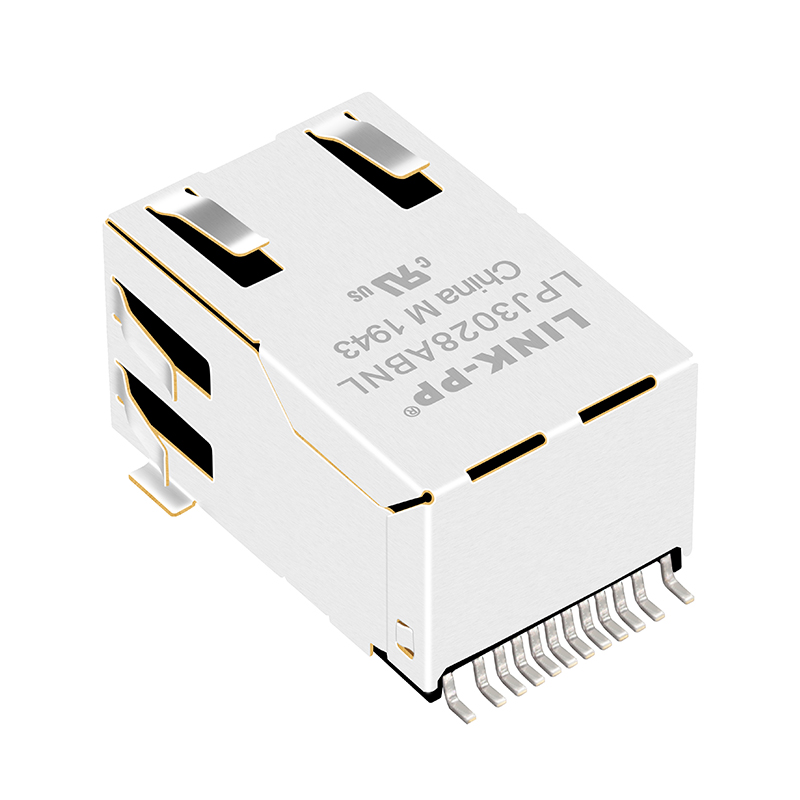

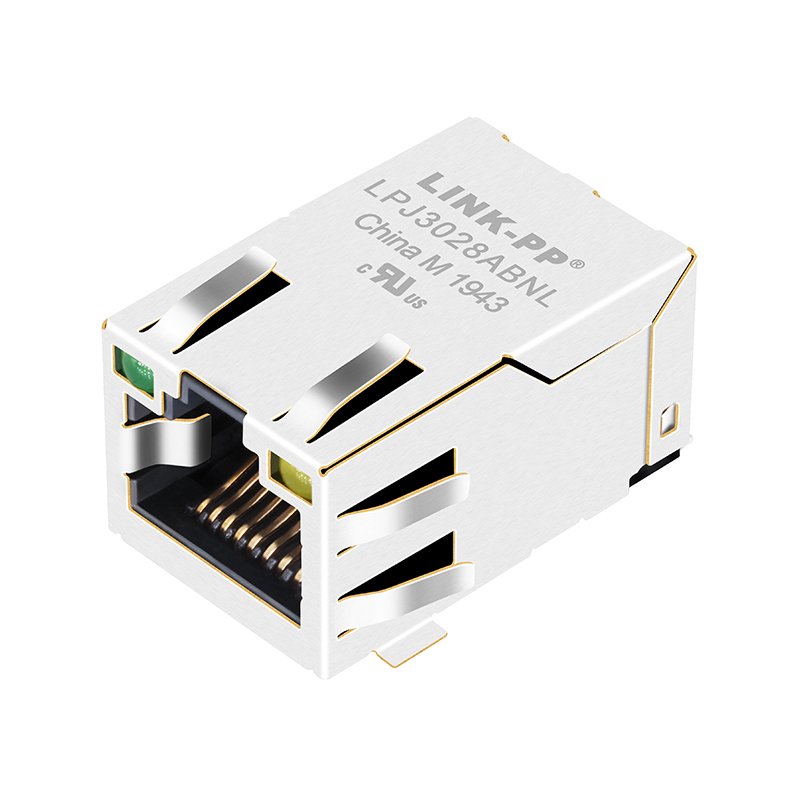

RJ45 Connector Variations
Production Facility 1
Production Facility 2
Production Facility 3
Testing Equipment 1
Testing Equipment 2
Testing Equipment 3
Company Profile
Established in 1997, the company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom design capabilities, we serve as a reliable global supplier to OEMs, contract manufacturers, and CEMs, supporting more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key regions and continuously expanding local inventory, we are committed to providing top-tier Ethernet RJ45 connectors and LAN transformer products worldwide.
Factory Office Front
Warehouse and Logistics
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping cost covered by the buyer.
What is your delivery time?
Ready-to-ship products in stock can be dispatched immediately. For mass production items, the standard lead time is 15-30 days.
What after-sales service do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please send your requirements to us so we can proceed with a detailed technical review.
What is your key advantage?
We have over 19 years of professional production experience and have partnered with major global enterprises for many years, ensuring high-quality standards and stable supply chains.
