SMT Modular Jack RJ45 MIC24122-5101
Products Description
Item RJ45 Female Connector
Part Number MIC24122-5101
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Technical Drawing 1

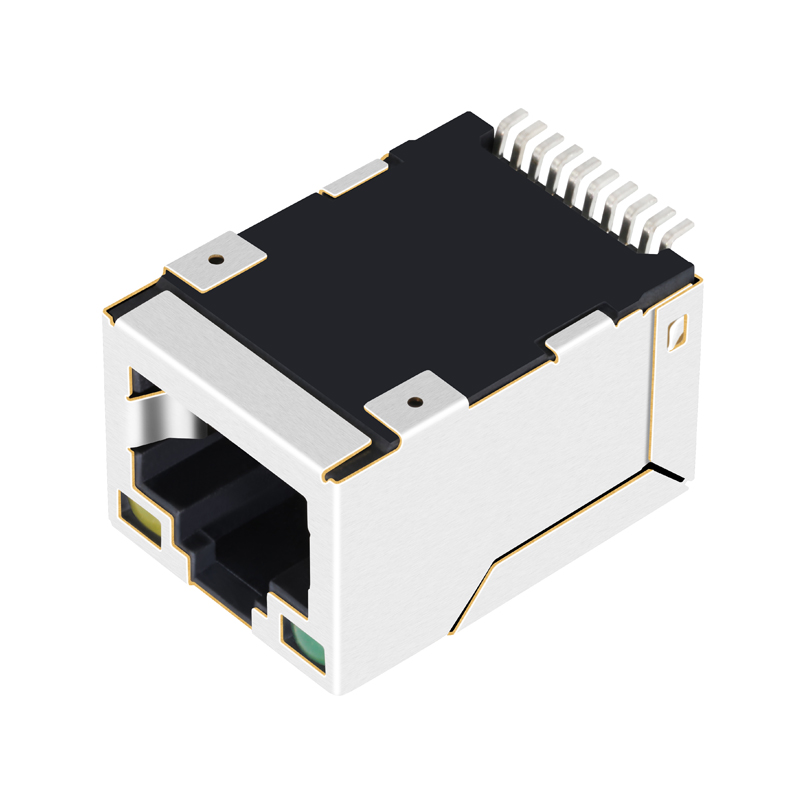

Technical Drawing 2

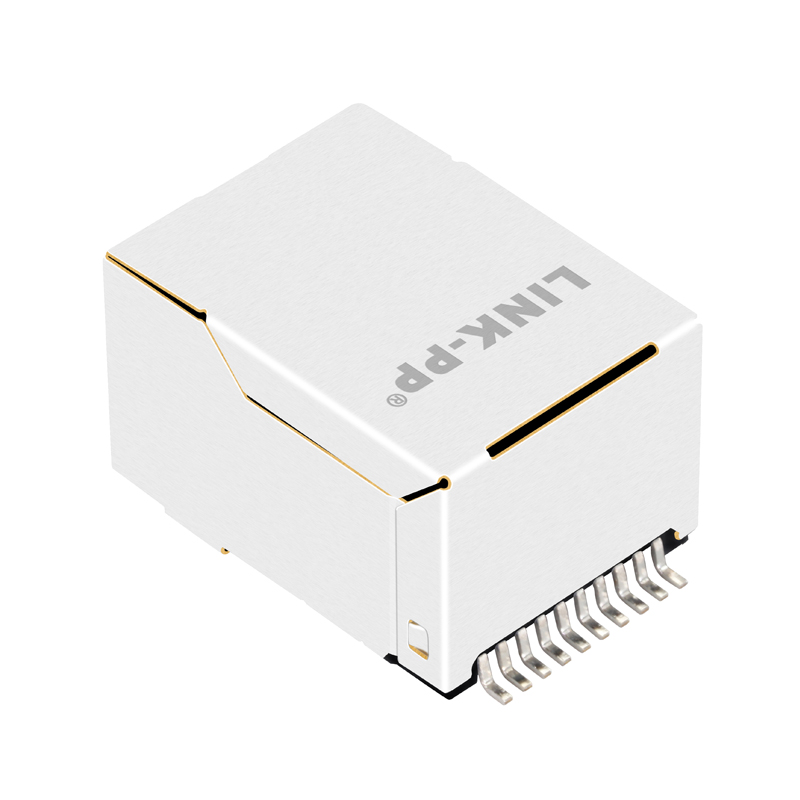

Technical Drawing 3

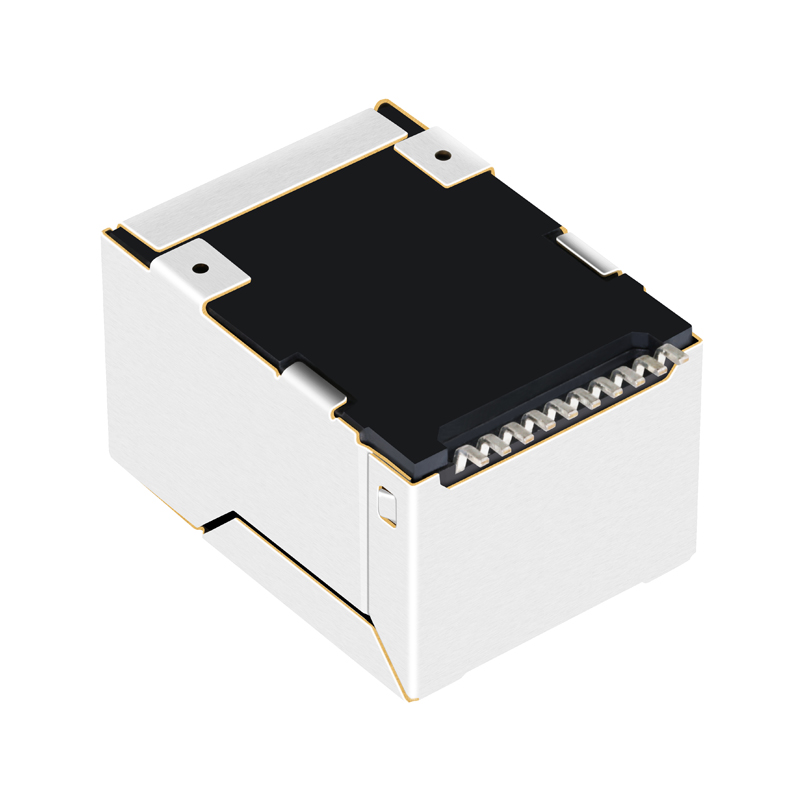

Technical Drawing 4

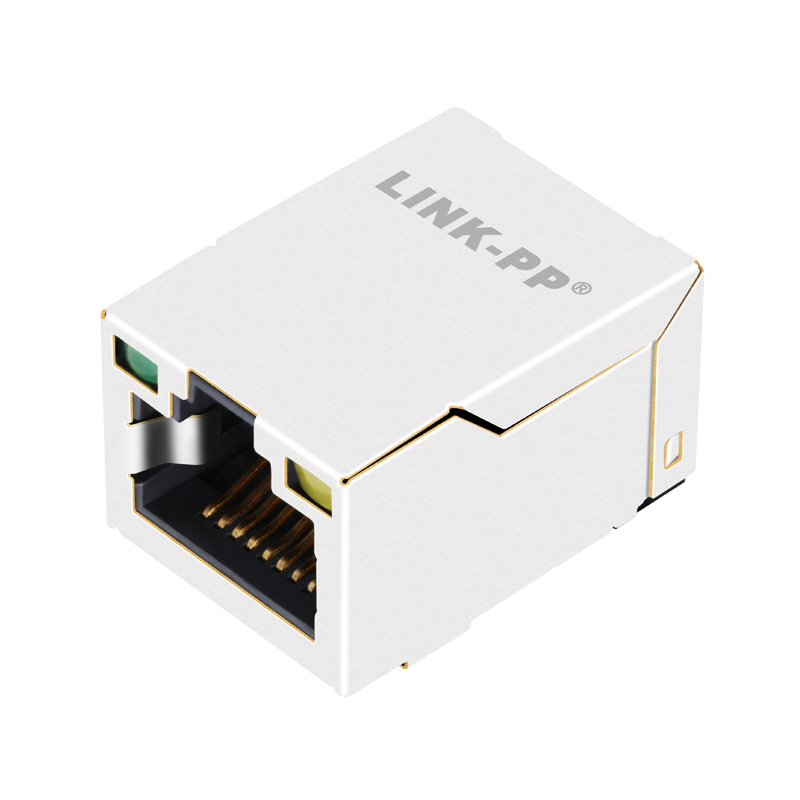

Technical Drawing 5

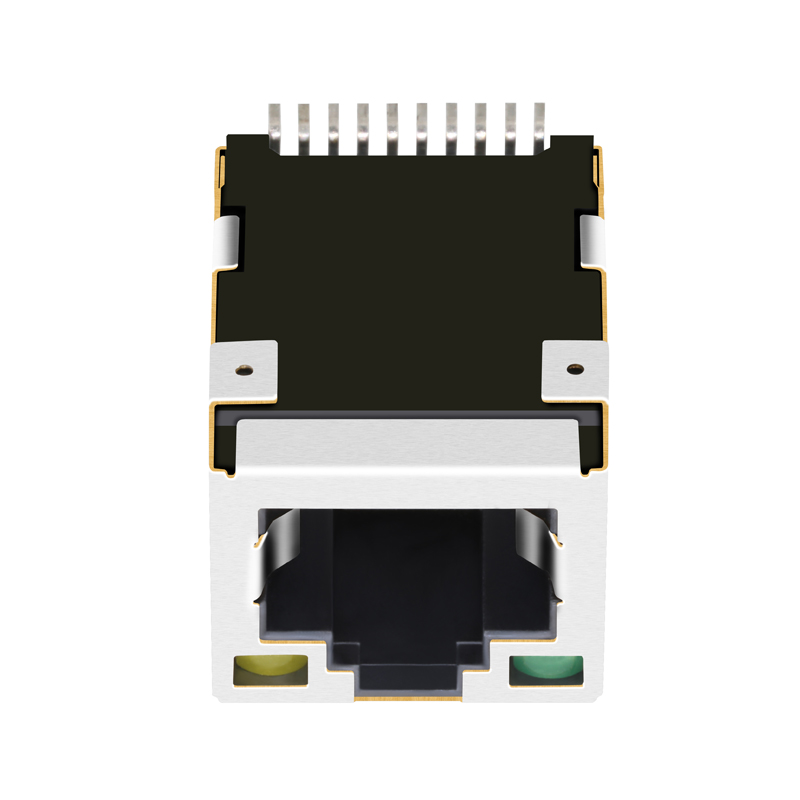

Technical Drawing 6
Technical Drawing 7
Measurement and Dimension Details
