Product Description

SMT RJ45 Jack With 10/100Base-T Magnetics Module HR961160C
SMT RJ45 Jack HR961160C
Products Description
Item RJ45 Female Connector
Bothhand Part Number HR961160C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

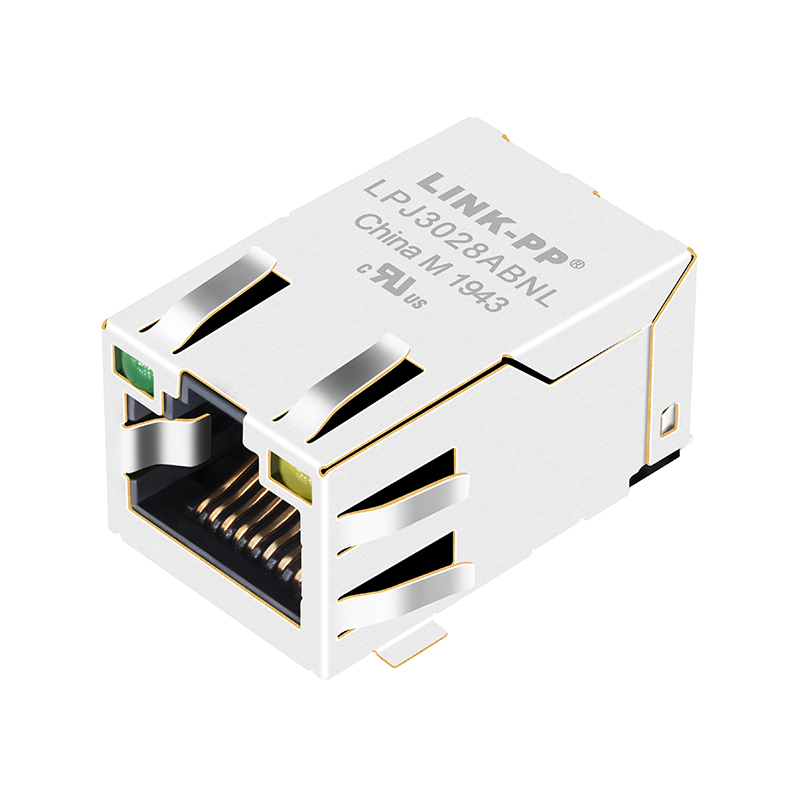

RJ45 Connector Detail 1
RJ45 Connector Detail 2
RJ45 Dimension Showcase 1
RJ45 Dimension Showcase 2
RJ45 Dimension Showcase 3
RJ45 Dimension Showcase 4
