JB0-1002NL 10/100 Base-t Tab up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led

Product Description

Product Categories Overview
JB0-1002NL 10/100 Base-t Tab Up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led
Products Description
Item RJ45 Female Connector
Part Number LPJ3011ABNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

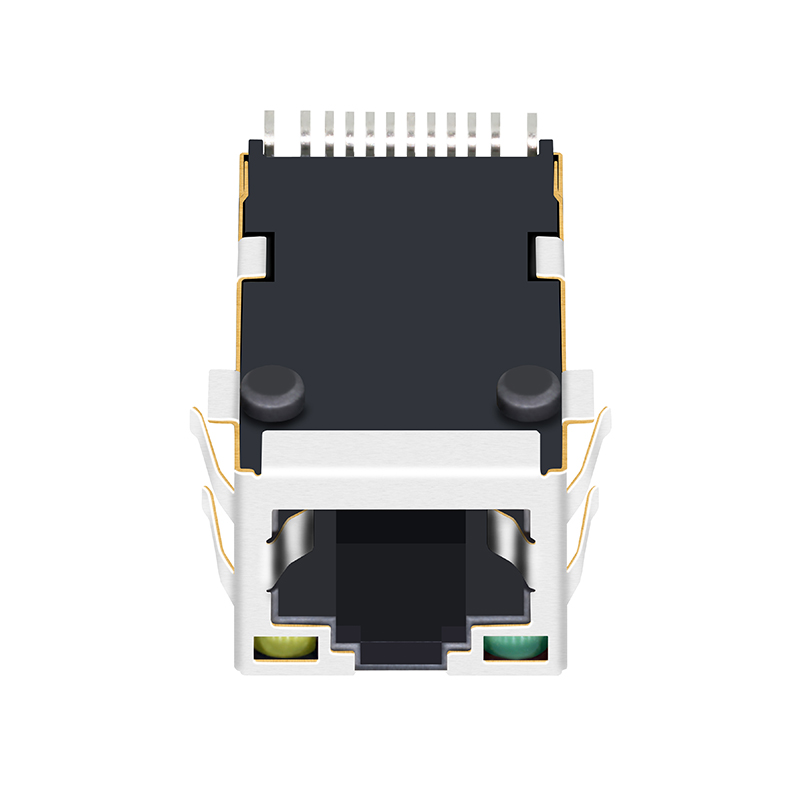

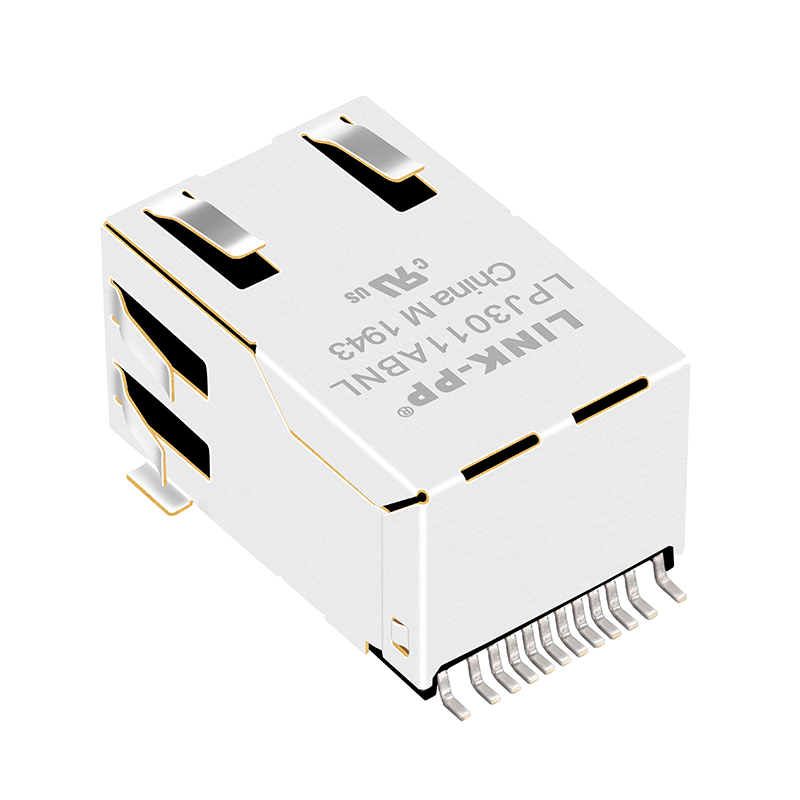

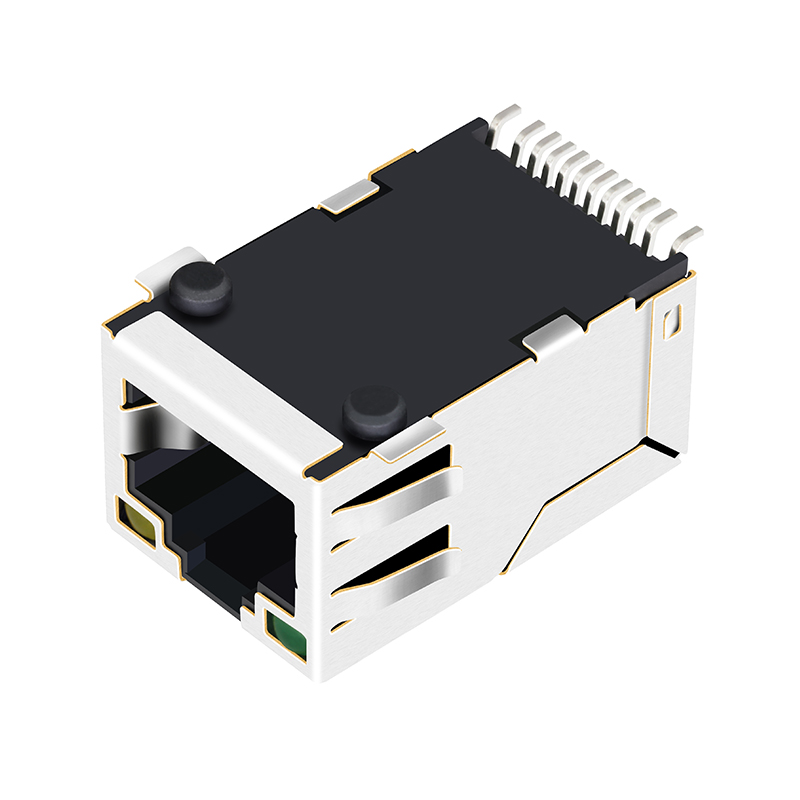

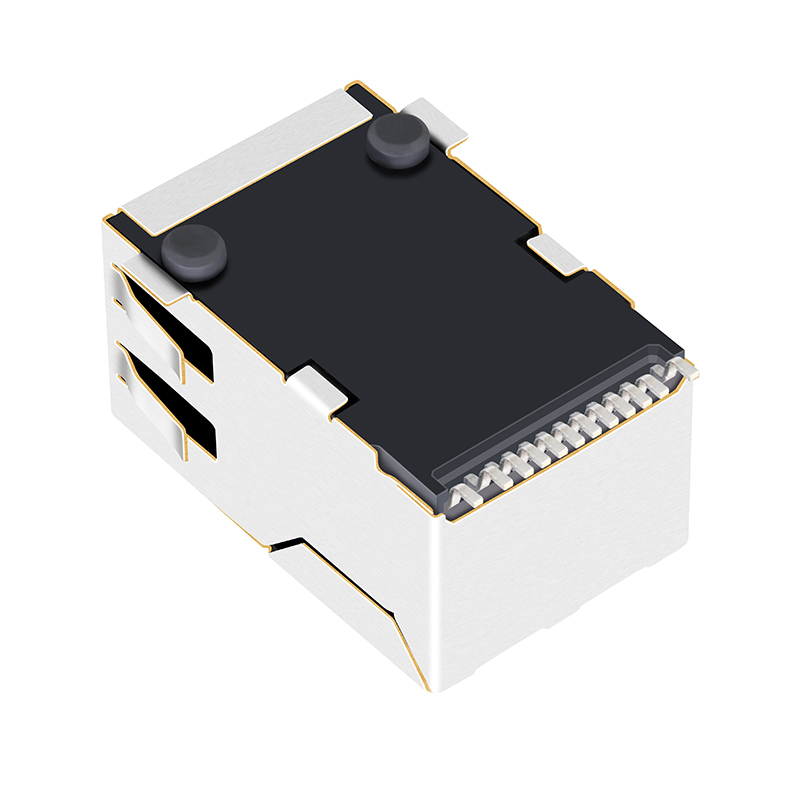

Product Angle View 1
Product Angle View 2
Product Angle View 3
Product Angle View 4
Product Series Selection Grid
Technical Specifications Details 1
Technical Specifications Details 2
Technical Specifications Details 3
Technical Specifications Details 4
Technical Specifications Details 5
Technical Specifications Details 6
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Factory Internal Structure
Quality Inspection Line
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
What after-service can you offer?
We offer a one-year guarantee period and provide technical support online 24 hours.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion regarding customization requirements.
What is your manufacturing advantage?
We have over 19 years of professional production experience and have been a trusted partner for major global technology firms for many years.
