JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ3005ABNL
Cross Reference Part Number JX30-0005NL 74980111211 J3011G21DNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

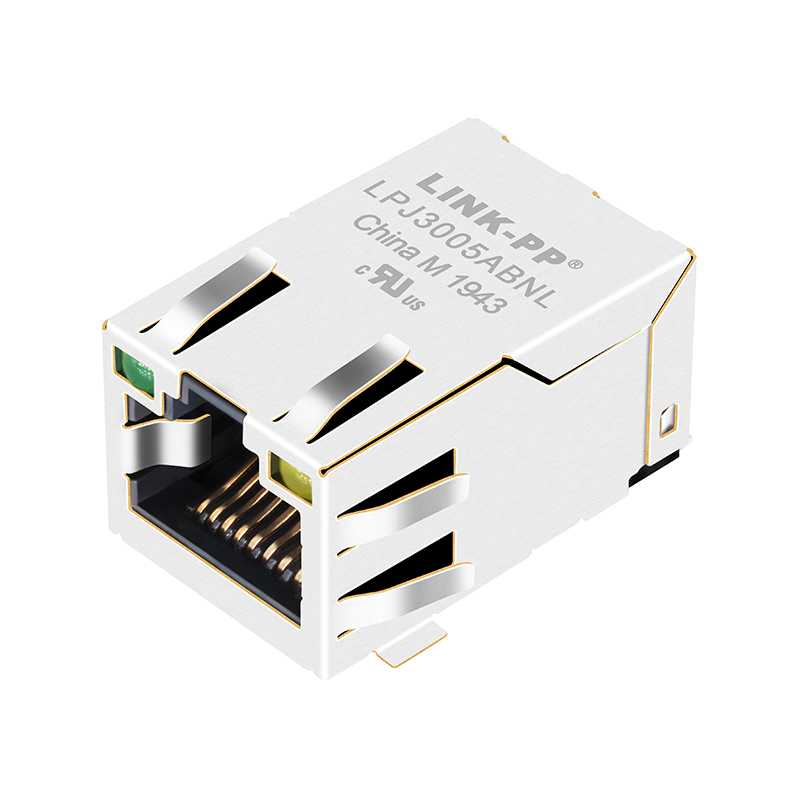

RJ45 Female Connector Product Dimension 1 RJ45 Female Connector Product Dimension 2

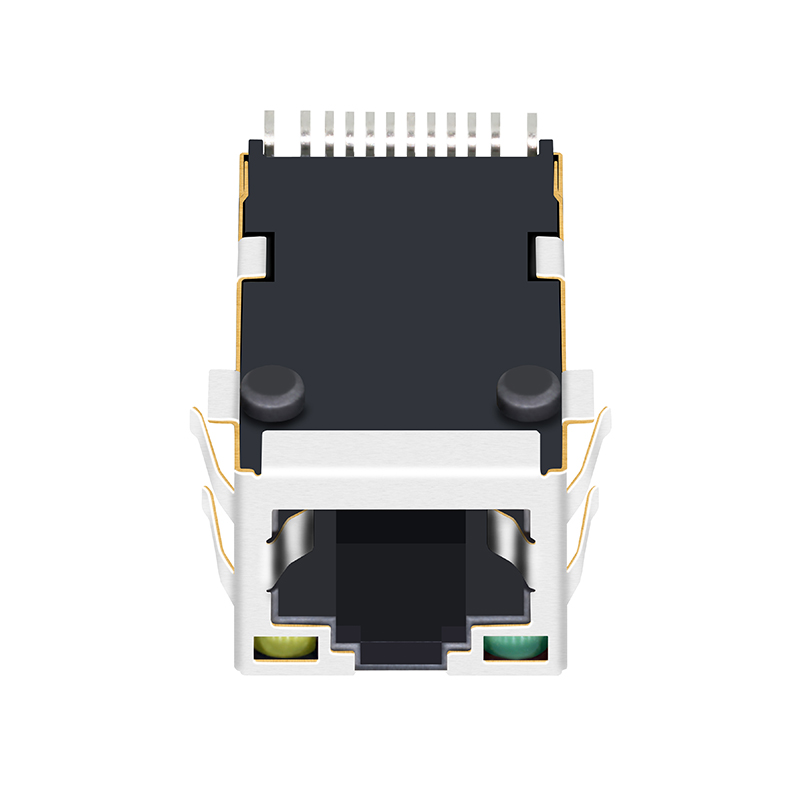

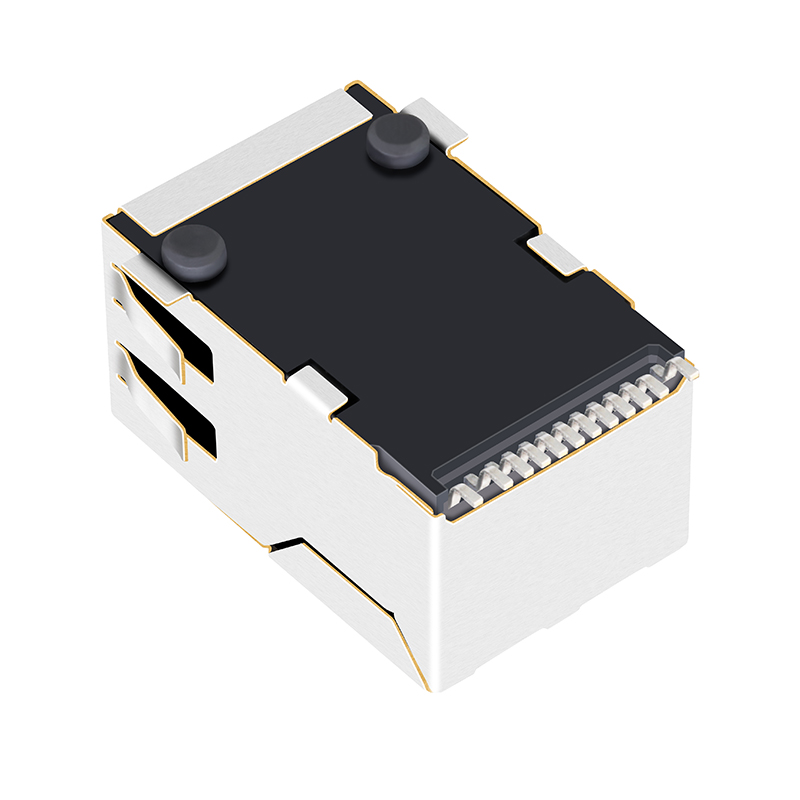

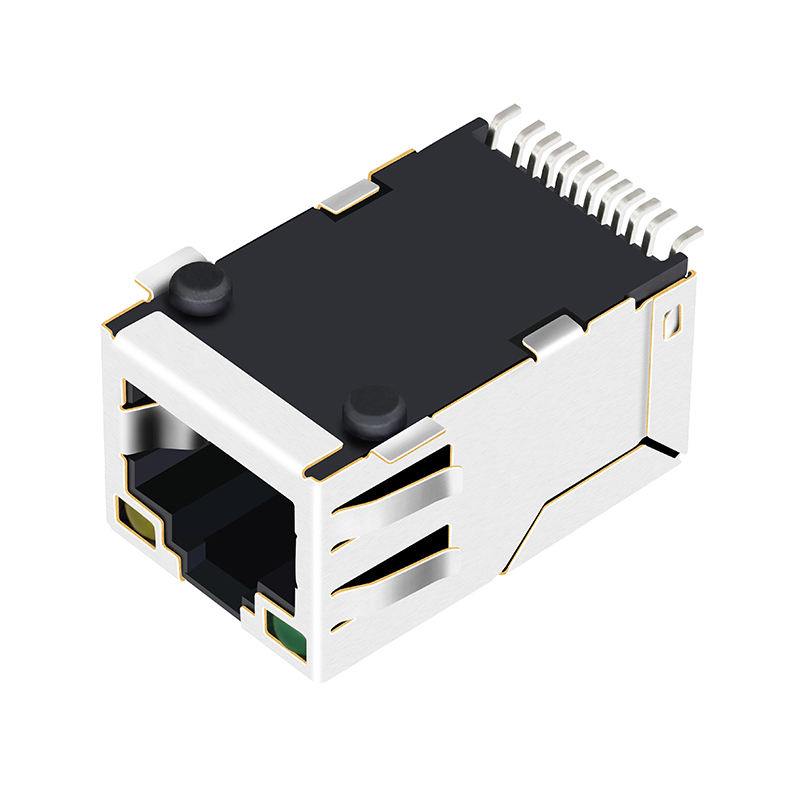

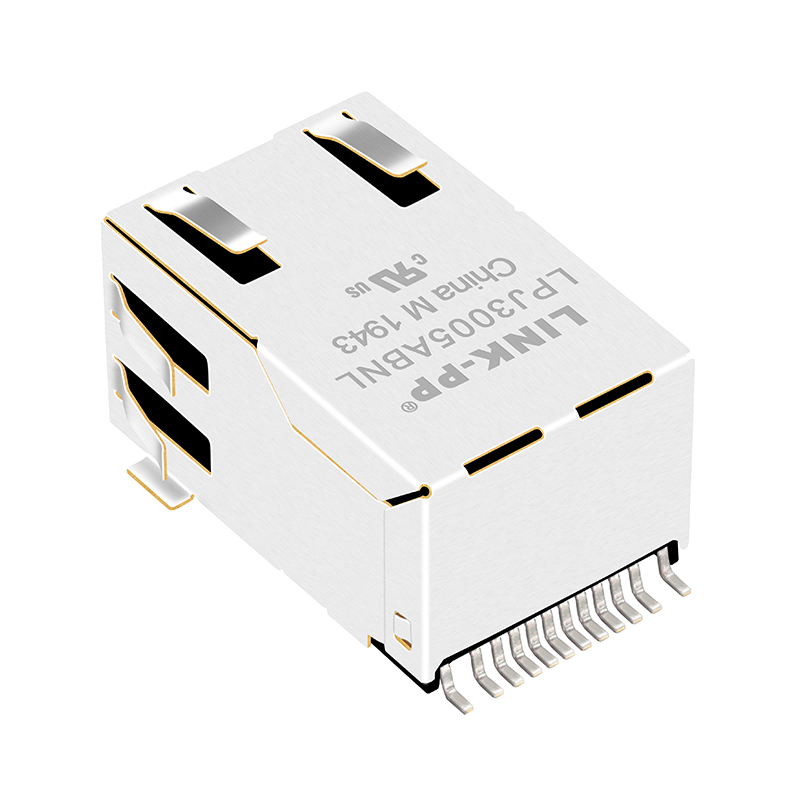

RJ45 Connector Left View RJ45 Connector Right View RJ45 Connector Front View RJ45 Connector Back View
RJ45 Connector Series Configurations
Manufacturing Plant View 1 Manufacturing Plant View 2 Quality Compliance Certificate Enterprise Exhibition Area Engineering Operations Room Global Supply Chain Networks
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider in the Ethernet RJ45 connector and LAN transformer industry.
Warehouse Facilities Automated Production Assembly
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you will need to cover the shipping cost.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production orders typically take 15 to 30 days.
What after-sales service do you offer?
We provide a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so we can discuss the details of your project.
What is your key advantage?
We possess over 19 years of manufacturing experience, supplying standard and customized networking solutions globally.
