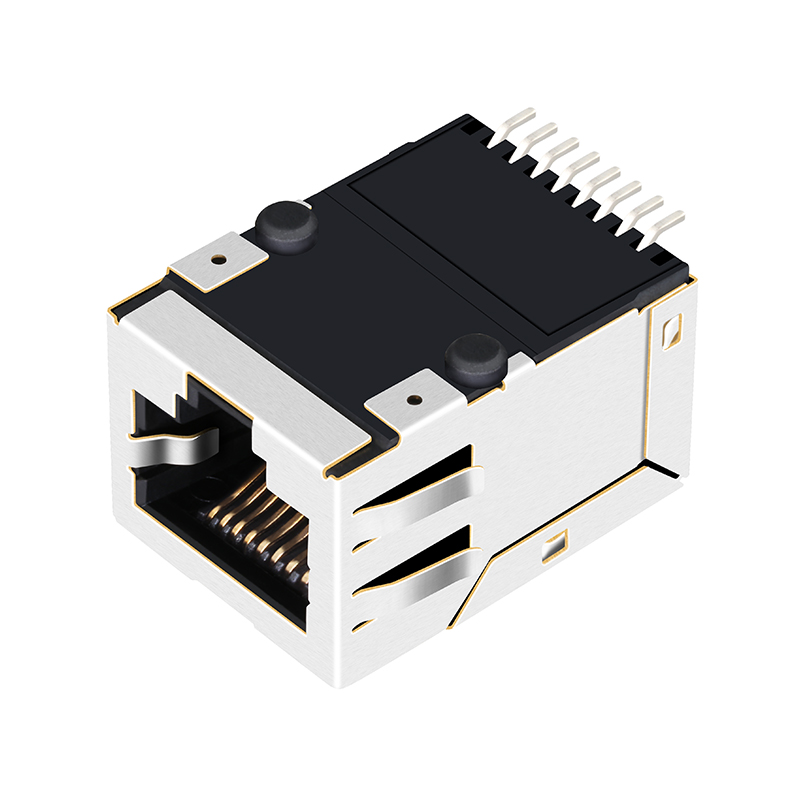

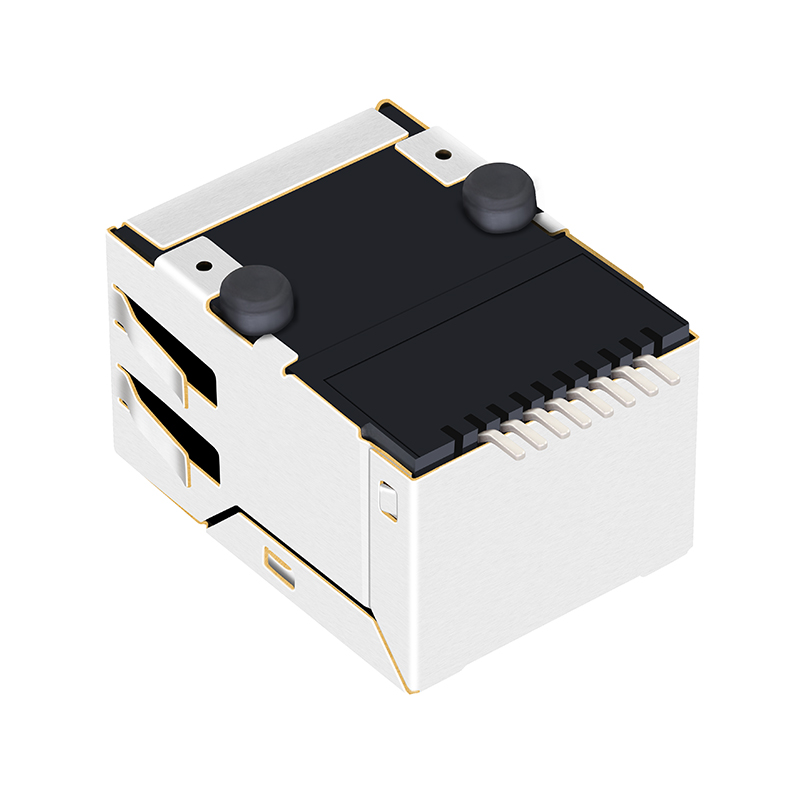

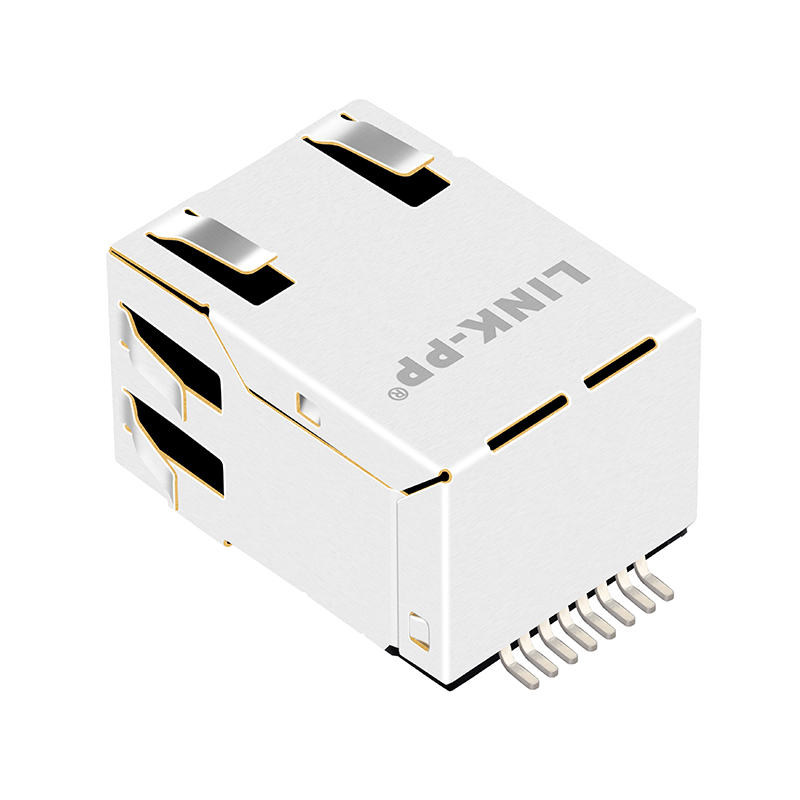

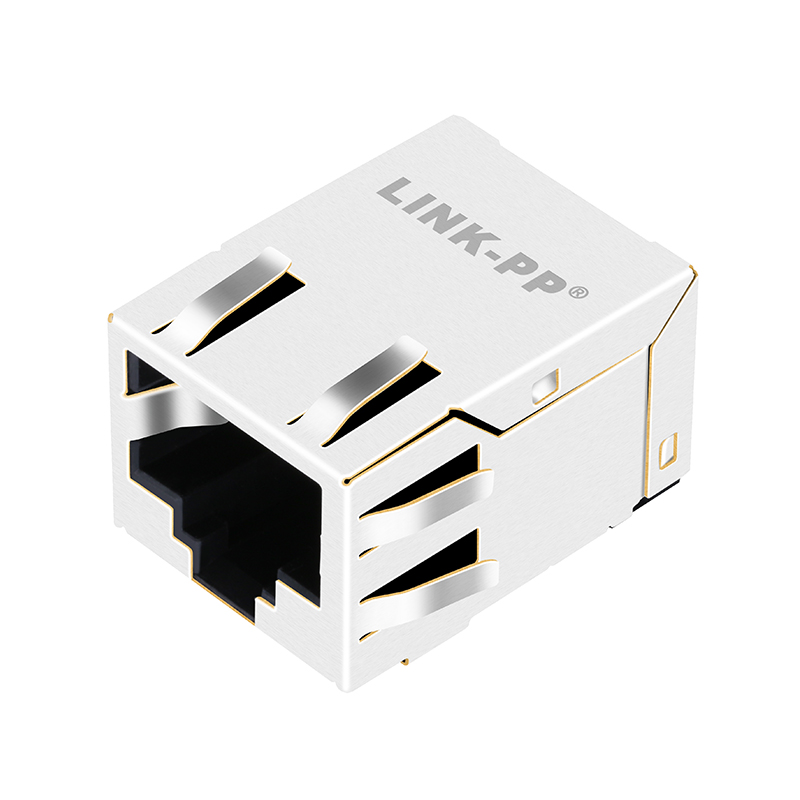

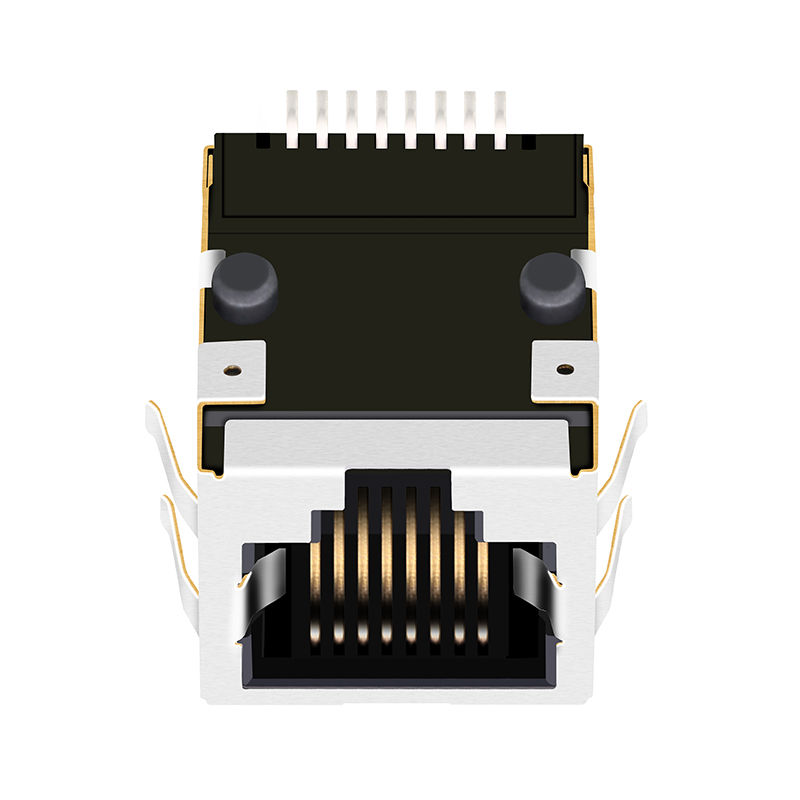

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109
| Part Number |
0855135109 |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITH LEDS/WITHOUT LEDS |
| Latch |
UP/DOWN |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100/1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- OEM Partner of TE (Tyco) For 9 Years
- Successful Customers: Texas Instruments, Samsung, Cisco, Siemens, Intel...
- Preferred Supplier of TI (Texas Instruments)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Pulse, Tyco, Halo, Wurth, and Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- Highly Discounted Shipping Costs by DHL, UPS, FEDEX, or TNT
Corporate Policy
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expecting Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
Preferred Supplier of TI, Samsung, Cisco, Siemens...
Featured Logo on BeagleBone Board
Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109
Frequently Asked Questions (FAQ)
1. What is the application speed supported by the 0855135109 RJ45 connector?
This SMT modular jack supports high-speed data transmissions of 10/100/1000 BASE-T Ethernet environments, making it ideal for gigabit connections.
2. Is this modular jack compliant with environmental standards?
Yes, it is RoHS compliant (RoHS-5 status, with lead in solder exemption) and conforms to Reach regulations.
3. What mounting type and orientation does this connector use?
It features a Surface Mount Technology (SMT) mounting method and a top entry layout. Additionally, the PCB mounting angle is structured for side entry.
4. What options are available for the contact mating area plating?
The connector is manufactured with Gold mating area plating available in three thickness configurations: 6u", 15u", and 30u", allowing customers to choose based on requirement.
5. What is the operating temperature tolerance for this component?
It is designed to perform safely across standard temperatures from 0 to 70°C, as well as industrial temperature ratings ranging from -40 to 85°C.
6. Can I get customized configurations such as LED options?
Yes. The 0855135109 RJ45 connector series supports custom design additions, including units configured both with LEDs and without LEDs, as well as optional shield EMI tabs.
