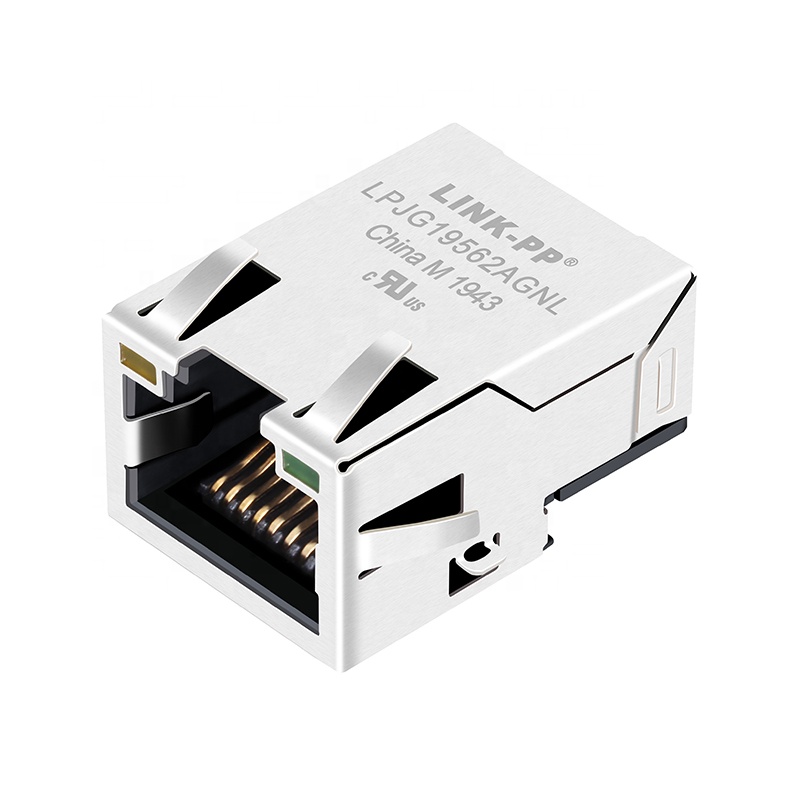

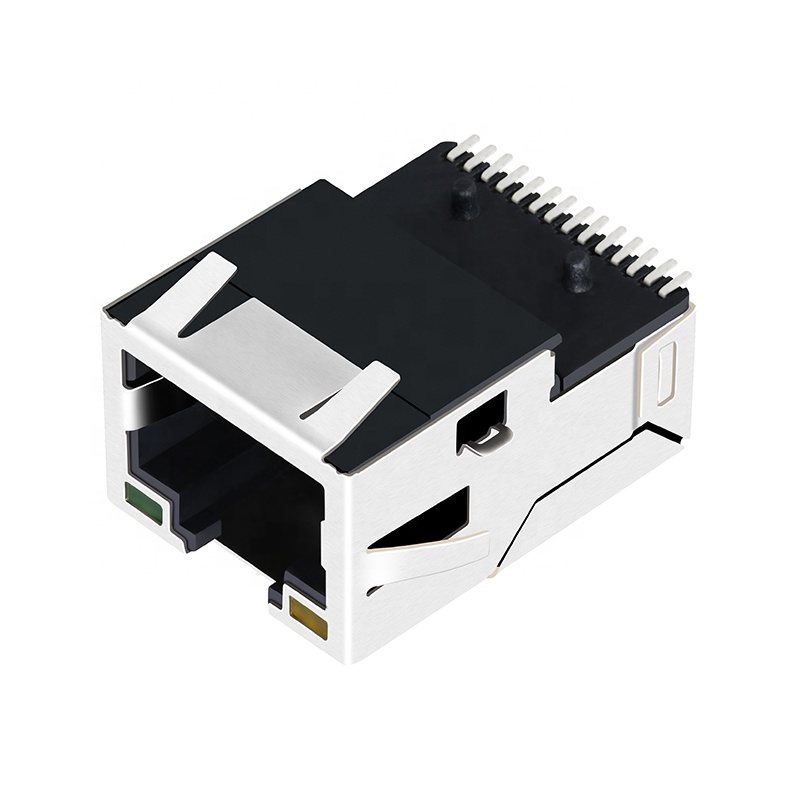

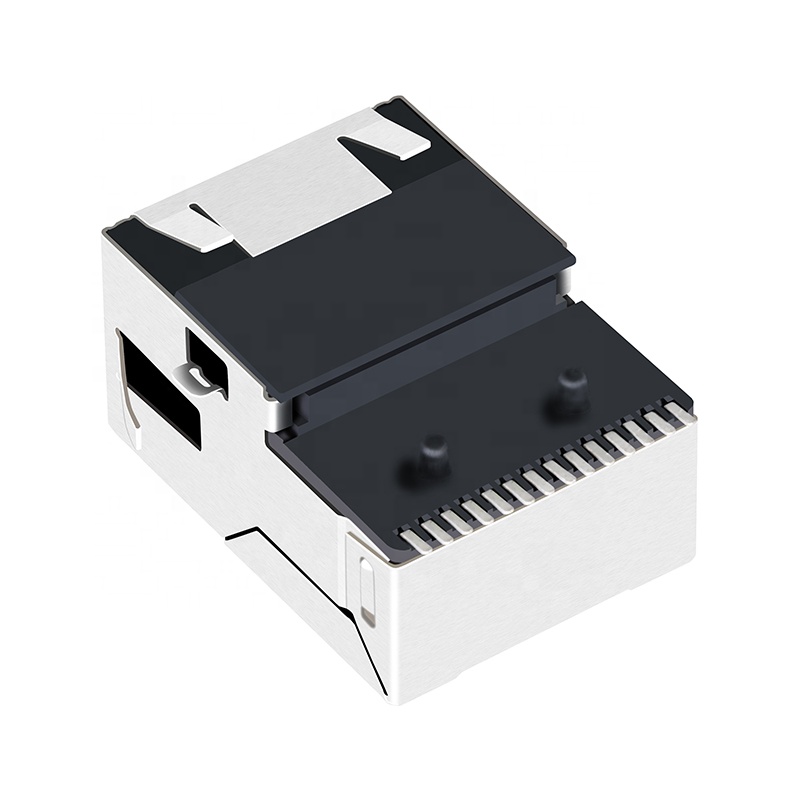

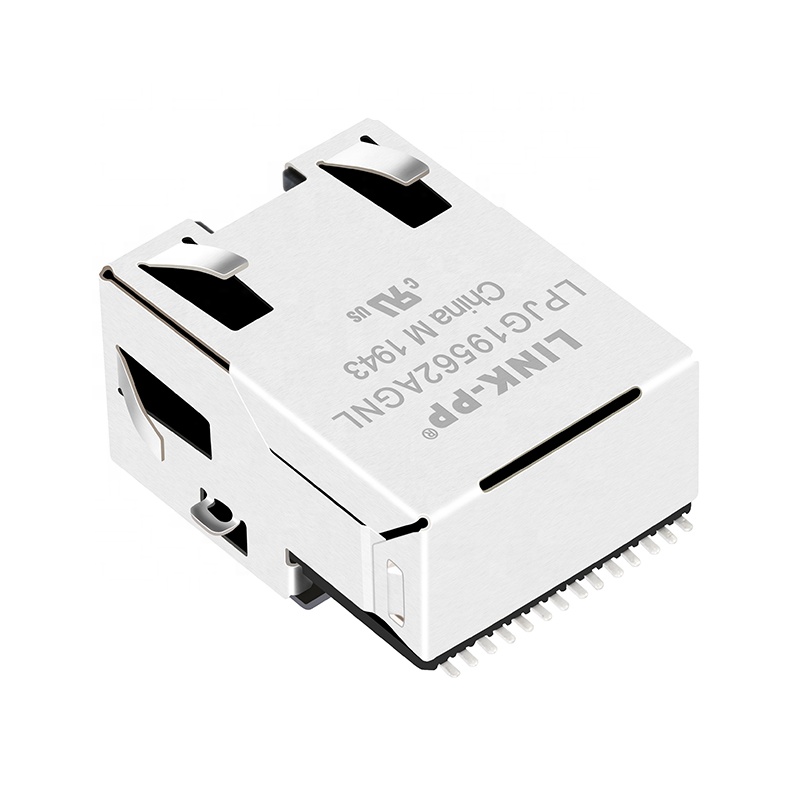

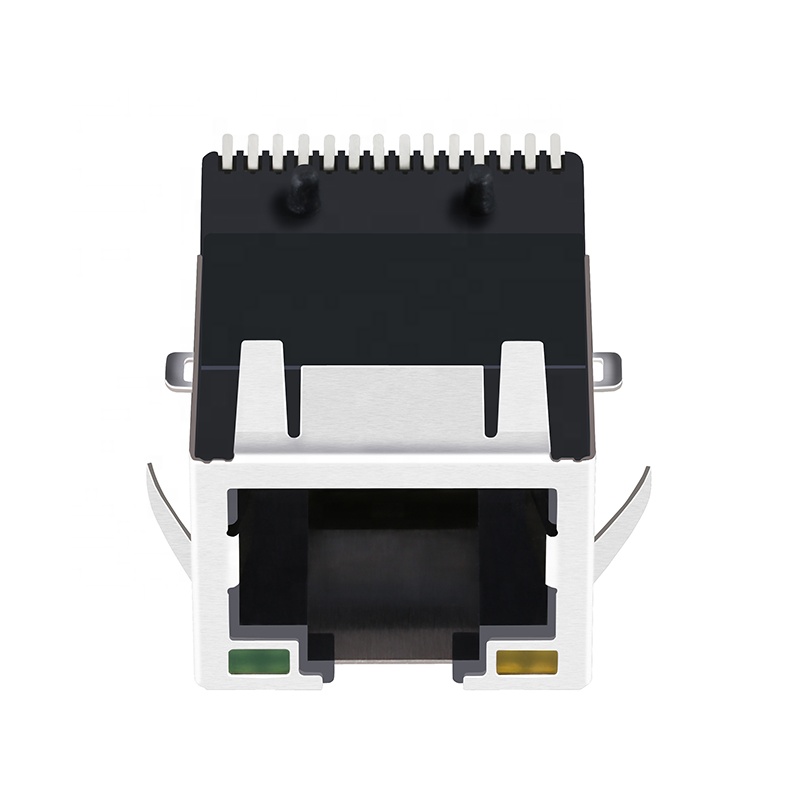

7498111120AR 7498111120R Shielded 1000Base-T 1 Port SMT RJ45 Modular Jack with Magnetics
Products Description
| Item |
RJ45 Female Connector |
| Manufacturer Part Number |
LPJG19562AGNL |
| Alternative Part Number |
7498111120AR 7498111120R |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet (Non-PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
Side Entry |
| Shield EMI Tabs |
With |
| LED Option |
Green/Yellow |
| PCB Material |
FR4 |
| PCB Retaining Post |
T Post |
| Operating Temperature |
0°C to 70°C |
| Bst Circuit |
Yes |
| Auto-MDIX |
Yes |
| Contact Mating Area Plating |
Gold 6u" / 15u" / 30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T, C |
