| Part Number |
5-6610197-1 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/YELLOW |
| Latch |
UP |
| Number of Ports |
1X2 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- OEM Of TE (Tyco) For 9 Years
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- Preferred Supplier Of TI (Texas Instruments)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Corporate Policy
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
• Preferred Supplier Of TI Samsung Cisco Siemens …
• You Will Look At The Logo On BeagleBone Board

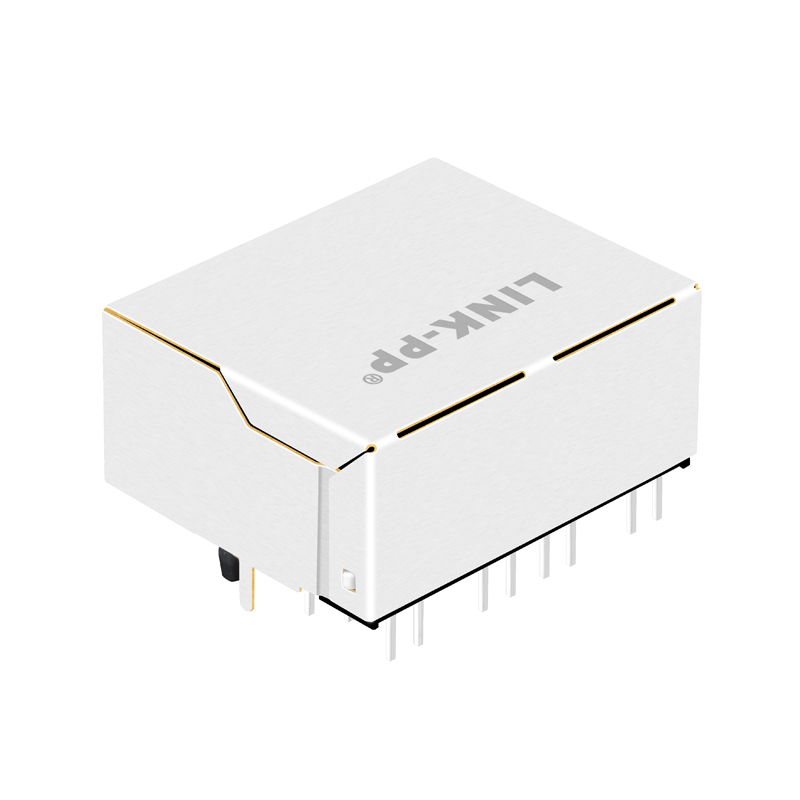

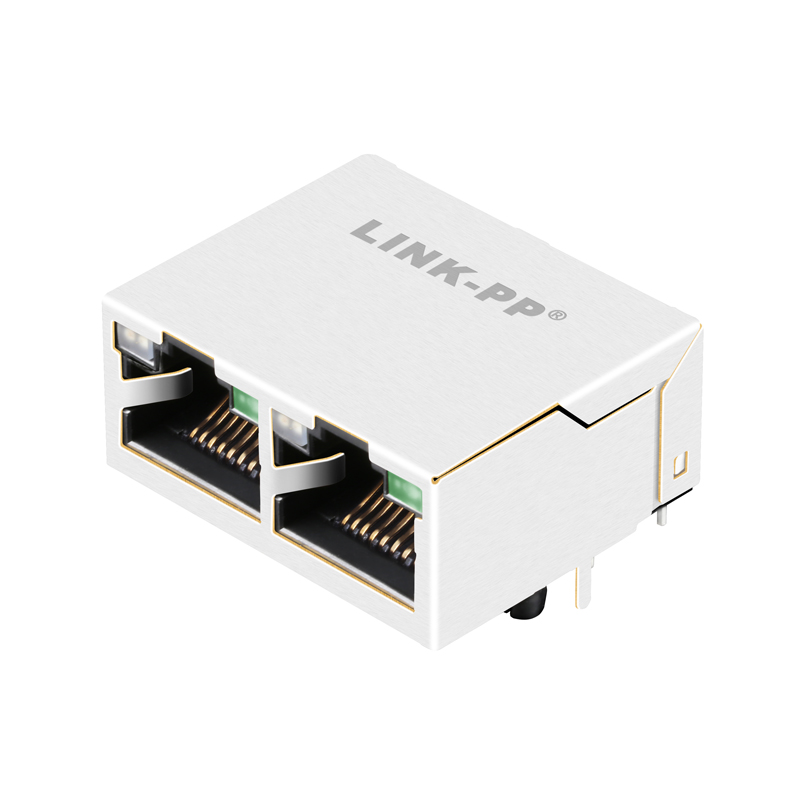

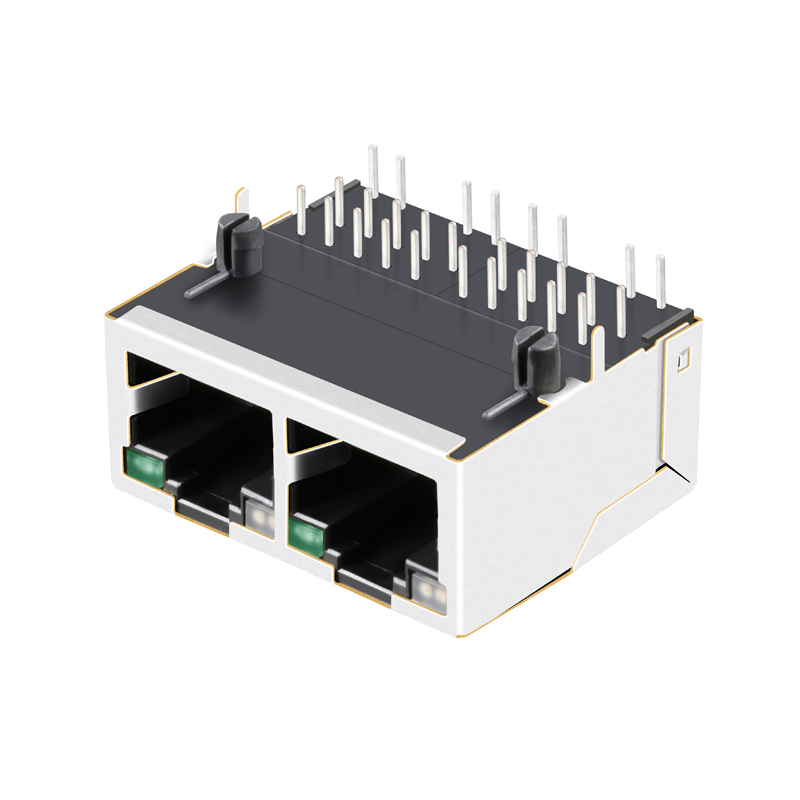

Q1: What is the main configuration of the 5-6610197-1 connector?
A1: The 5-6610197-1 is a 10/100 BASE-T Ethernet interface RJ45 female connector. It features a 1X2 Harmonica Jack layout (2 ports) with a Tab-Up latch configuration.

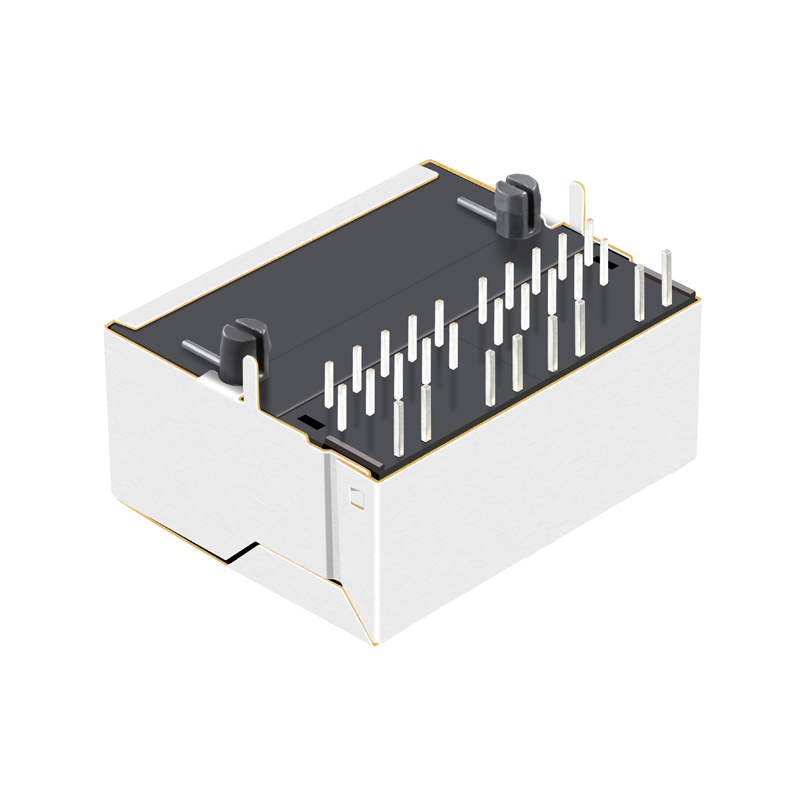

Q2: What mounting type and angle does this RJ45 connector use?
A2: This connector uses THT (Through-Hole Technology) solder pin configuration with a side-entry (right angle) PCB mounting angle and a T-post retaining design for secure installation.
Q3: Is the 5-6610197-1 connector RoHS compliant?
A3: Yes, it is RoHS compliant under the RoHS-5 designation, which includes a lead-in-solder exemption.
Q4: What is the operating temperature range for this Ethernet interface?
A4: The connector is designed to function reliably within an operating temperature range of 0 to 70°C, with extended industrial options available from -40 to 85°C.
Q5: What are the contact plating options for the mating area?
A5: The contact mating area features high-quality Gold plating, with options including 6u", 15u", 30u", or 50u" to suit different durability and performance standards.

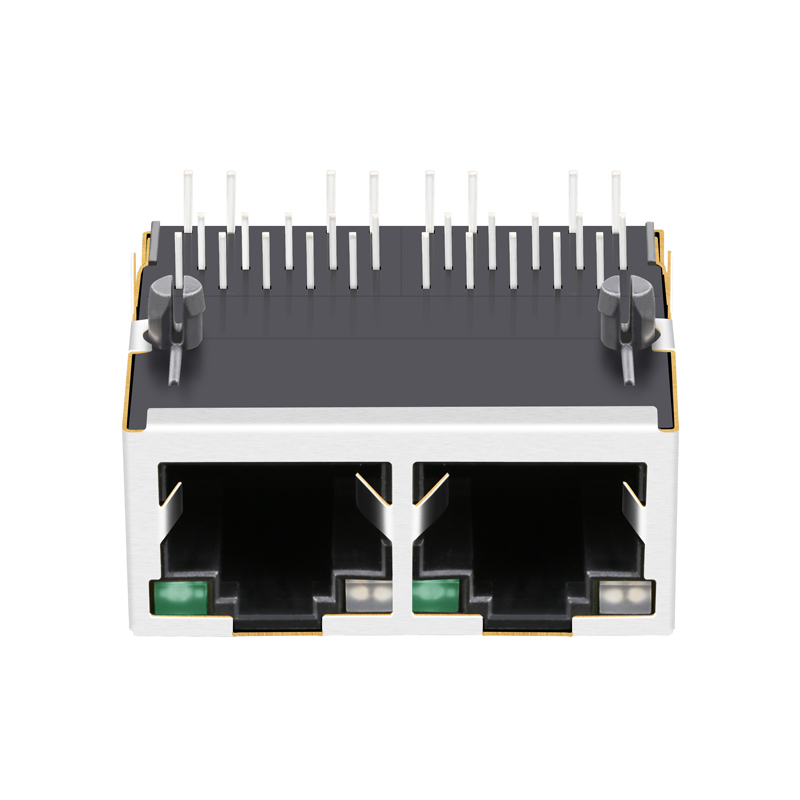

Q6: Does the connector support LED indicator integrations?
A6: Yes, it comes with a Green/Yellow LED option to provide clear visual status indicators directly on the connector face.
