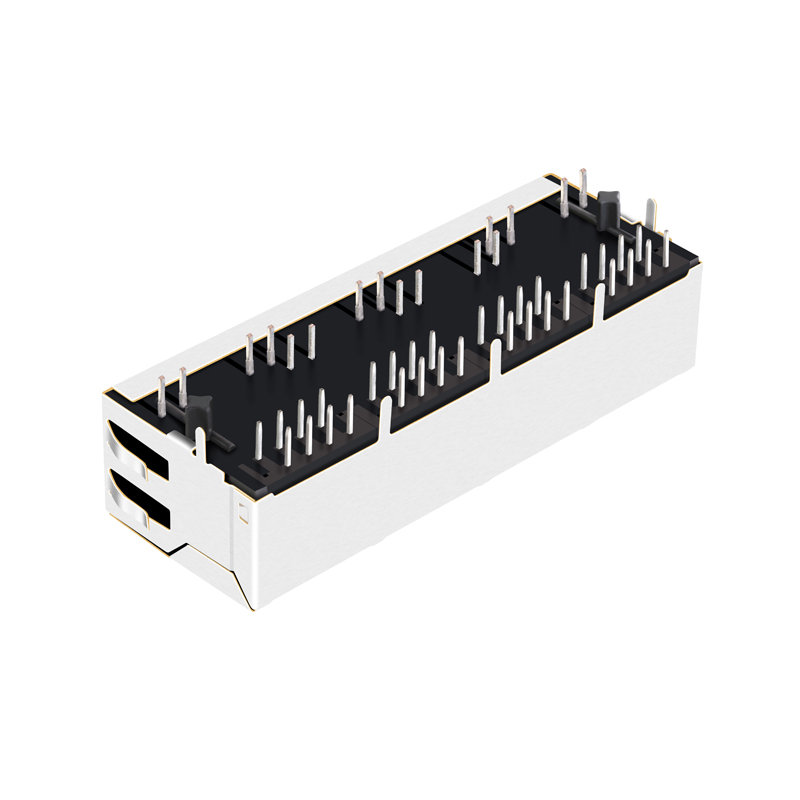

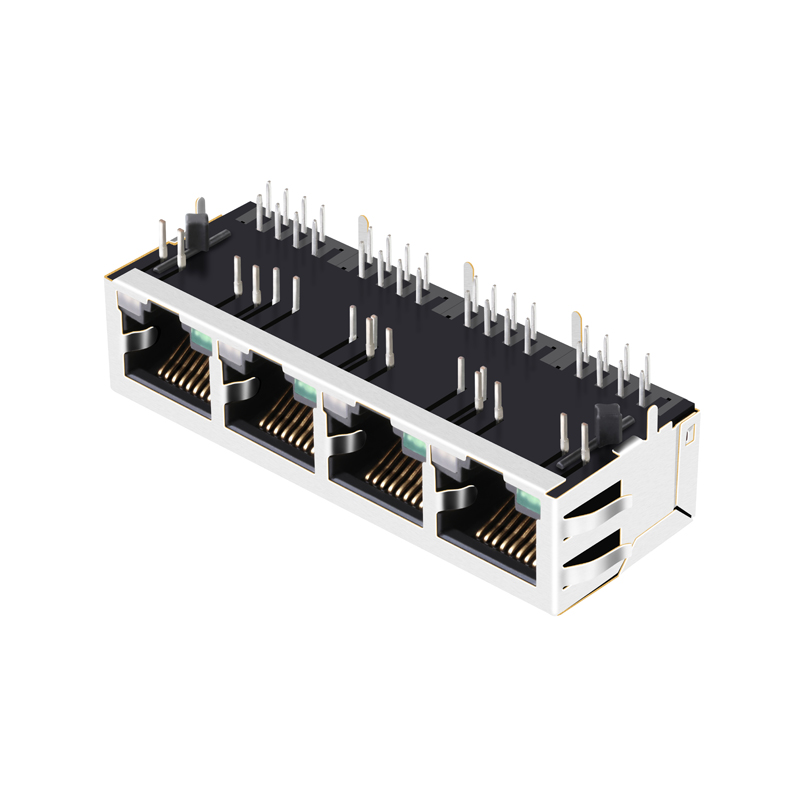

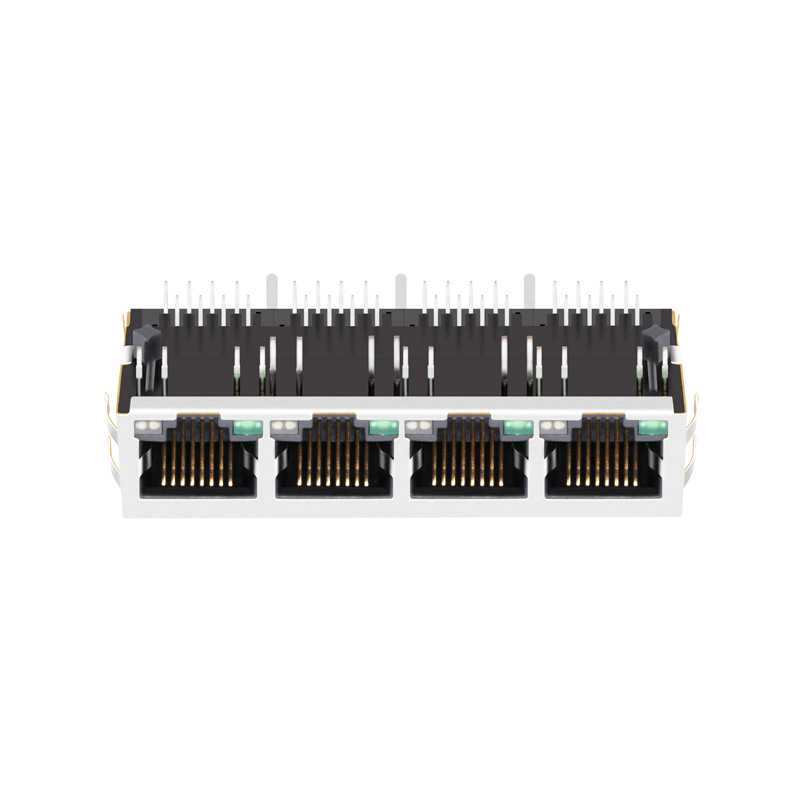

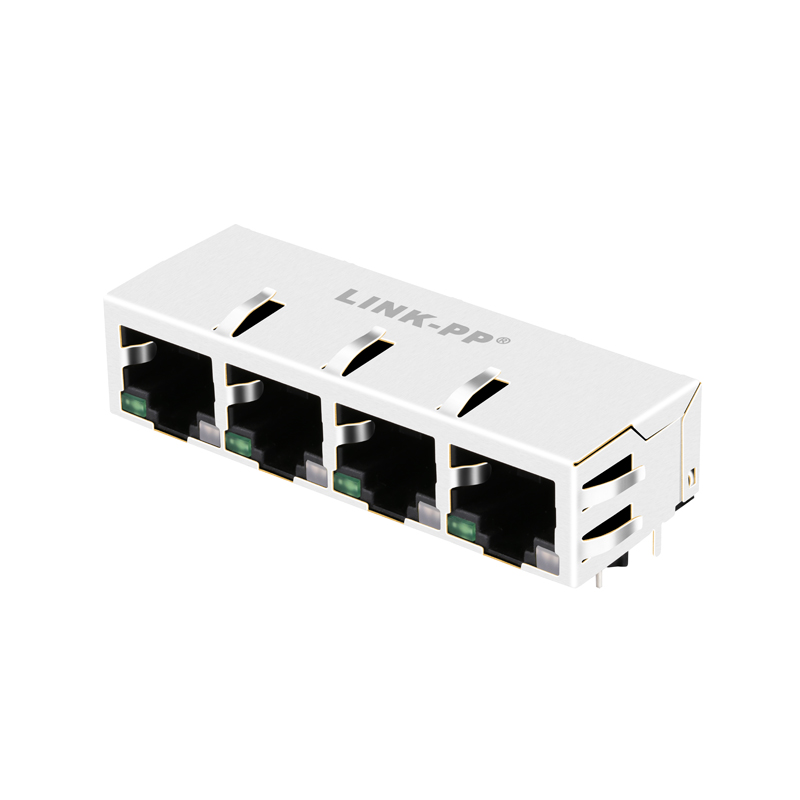

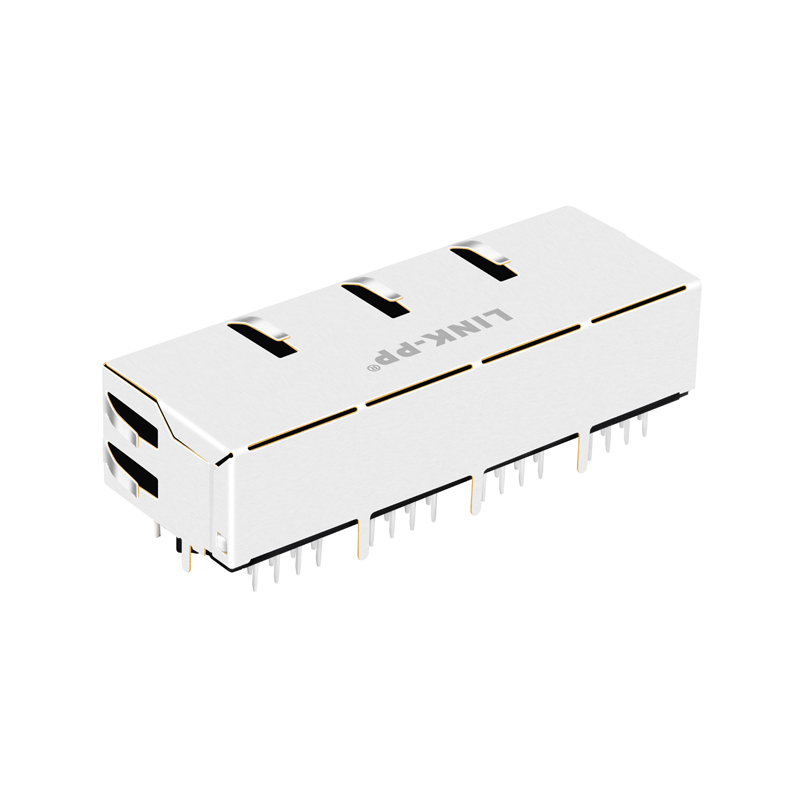

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Send Inquiry

Product Description

Part Number	5-6610068-7
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	GREEN/GREEN&ORANGE
Latch	UP
Number of Ports	1X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	1000 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services

Frequently Asked Questions (FAQ)

What are the transmission speed capabilities of this RJ45 connector?

This modular jack supports Gigabit Ethernet transmission speeds up to 1000 BASE-T.

What is the physical configuration of the connector ports?

It has a 1X4 layout containing 4 ports in total, designed as a side-entry PCB mount angle with a "Tab Up" latch configuration.

Does this connector have built-in LEDs?

Yes, it features integrated indicator LED options showing Green/Green & Orange.

What are the operating temperature standards for this part?

The connector is designed to support operating environments ranging from 0 to 70°C or -40 to 85°C.

What type of plating is applied to the contact mating area?

The contact mating area features high-quality gold plating, with thickness options of 6u", 15u", 30u", or 50u".

Is the product compliant with environmental standards?

Yes, it is RoHS compliant (RoHS-5 status with lead in solder exemption) and manufactured under strict environmental policies.
