Product Description

Product Description & Characteristics
✓ RJ45 Connector with integrated transformer / common mode choke
✓ Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
✓ Available in SMT, THT and THT with USB
✓ Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
✓ HPLE products: Improved Common Mode Rejection due to additional NiZn cores

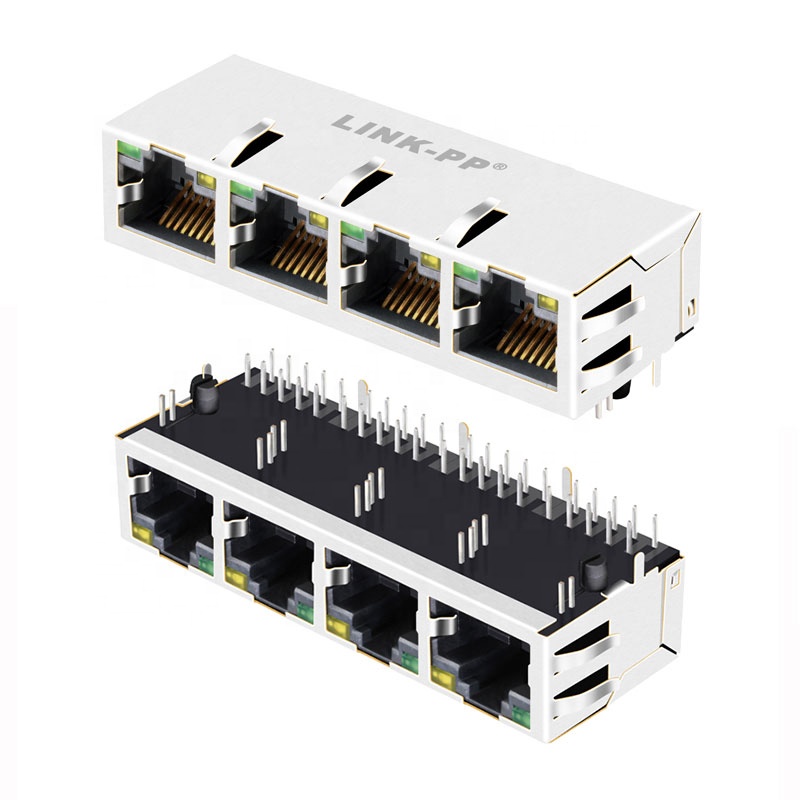

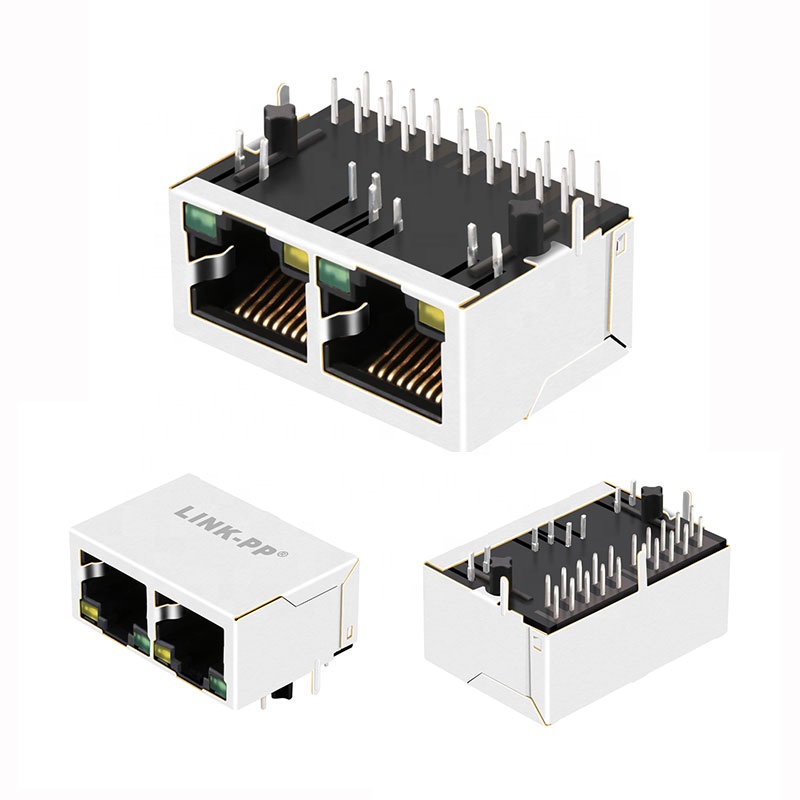

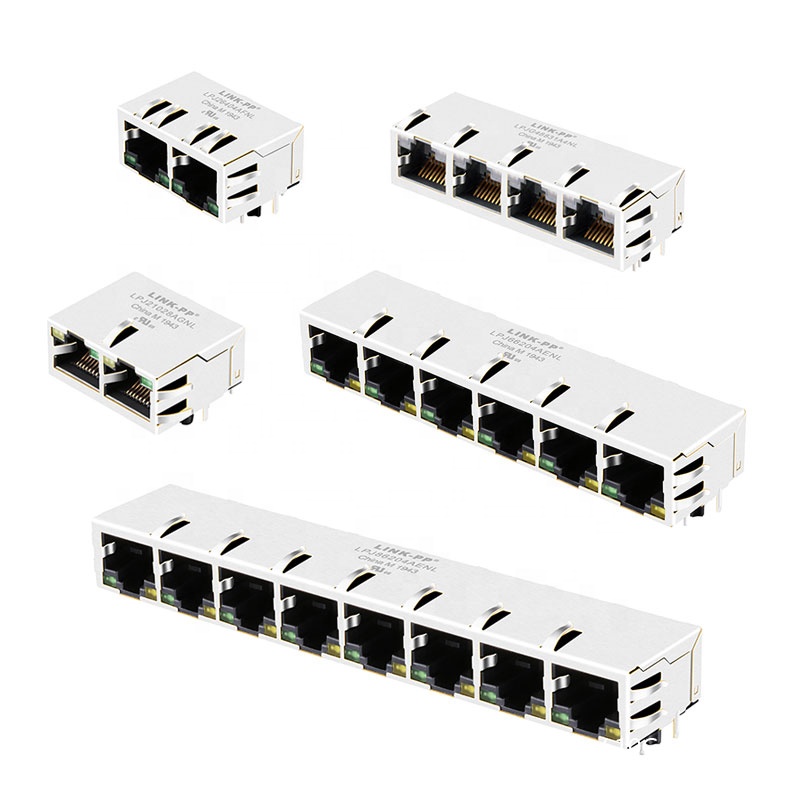

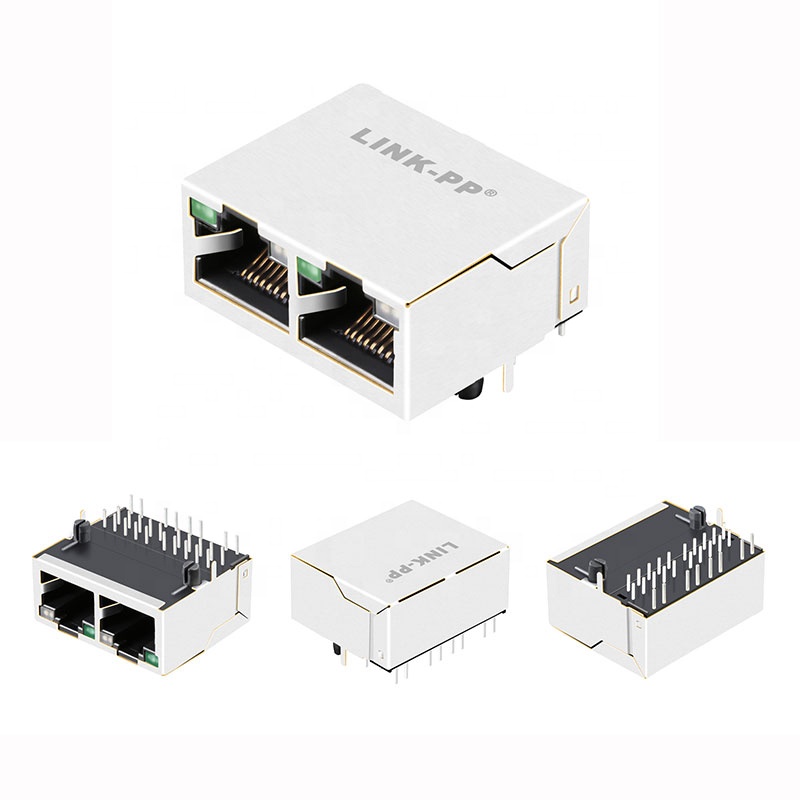

RJ45 Connector Product Diagram
Specification
Item Value
Model Number Integrated Connector Modules
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports 1x2 1x4 1x6 1x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C/-40°C ~ +85°C
Packing & Delivery
Package Details: Tray Packing
Carton Size: 37 * 30 * 30 cm
Weight & Quantity:
G.W./carton: 9kg
Qty/carton: 600pcs
SPQ: 30pcs
N.W/pcs: 0.015kg
Packing and Packaging Box Diagram
