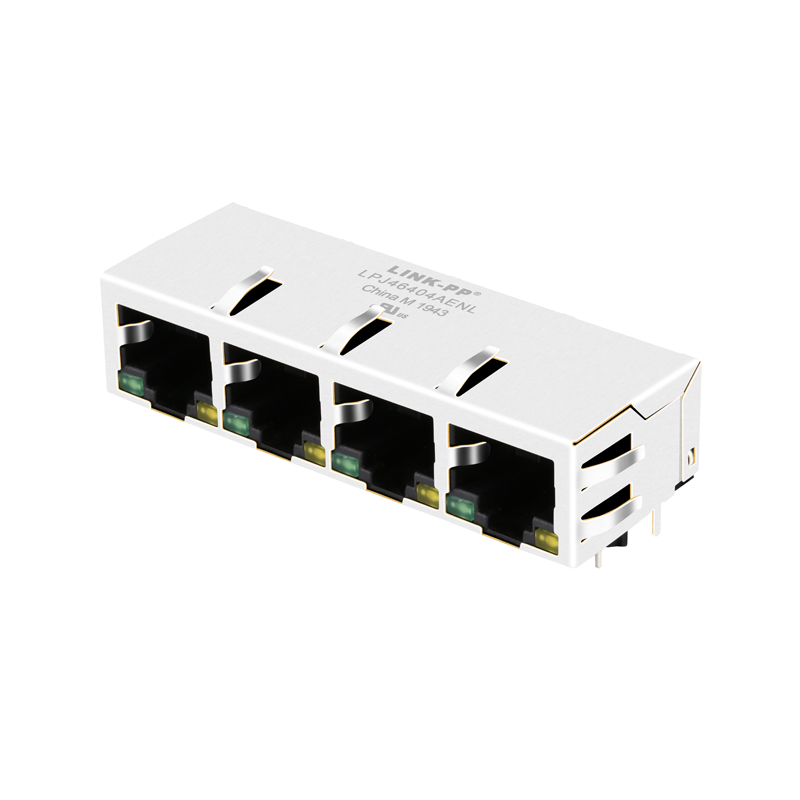

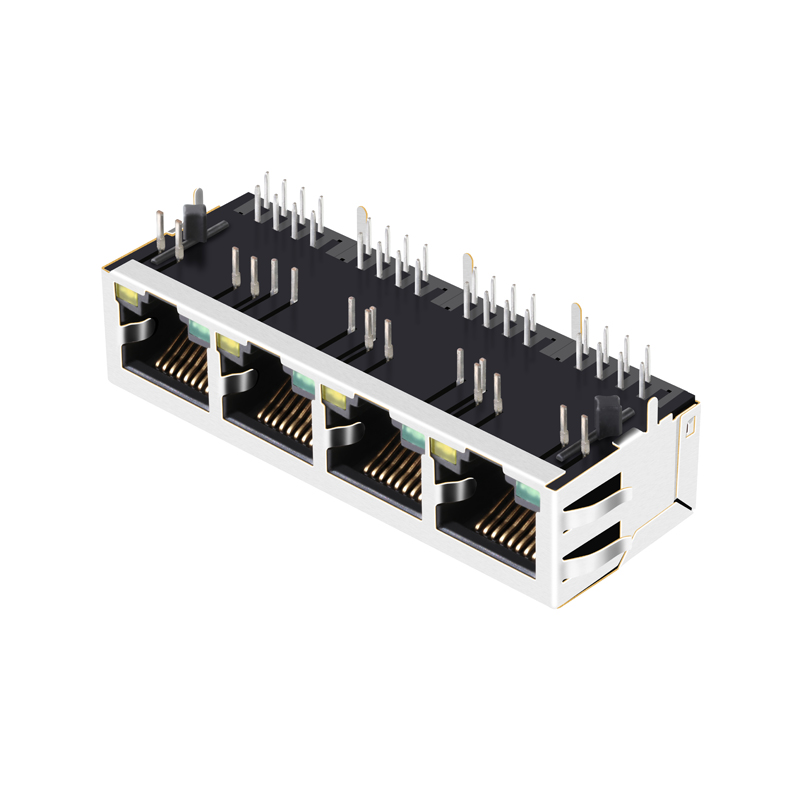

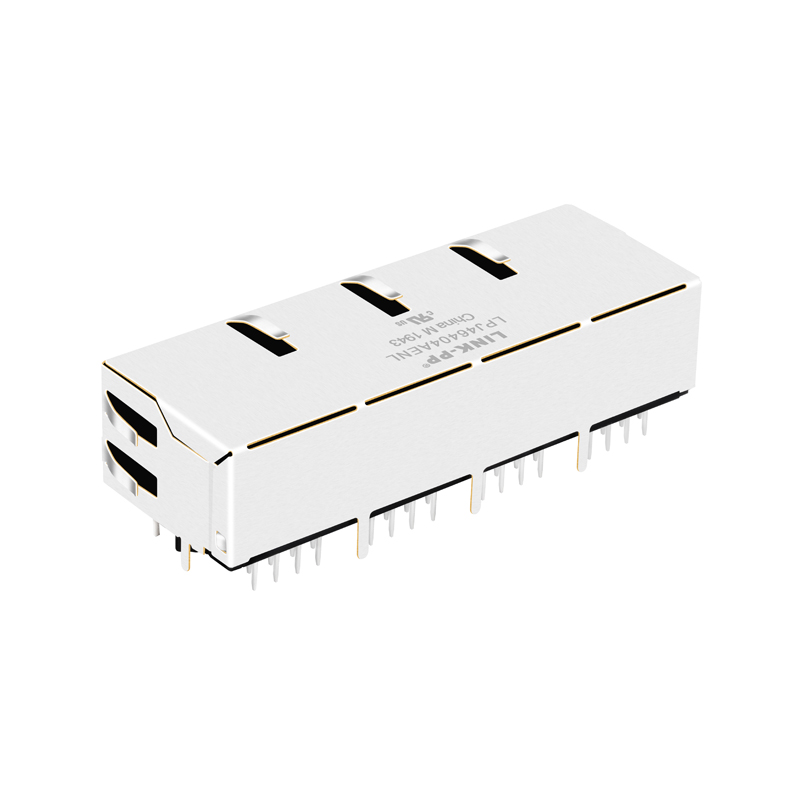

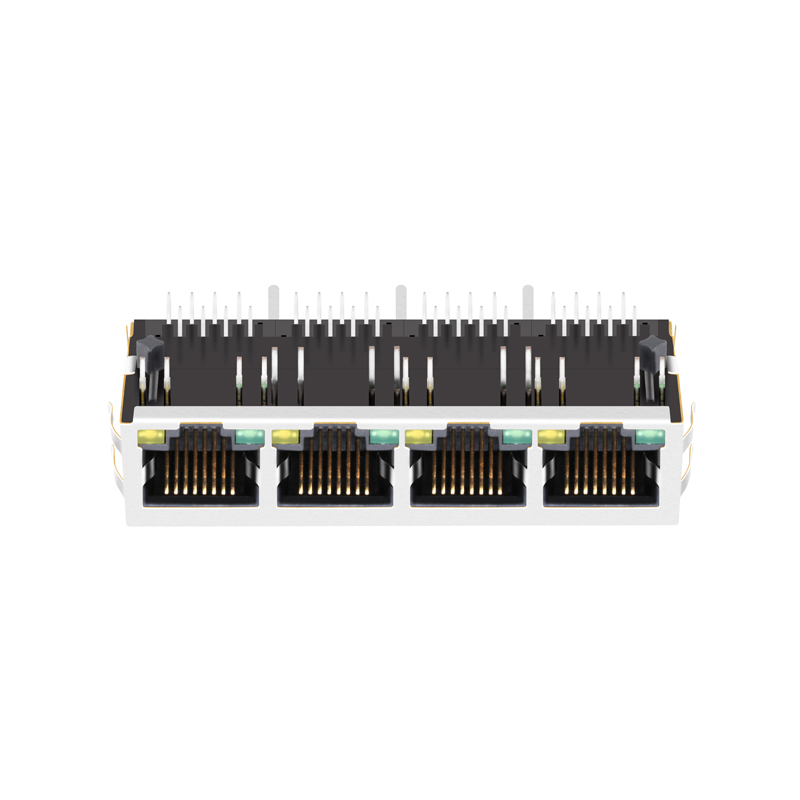

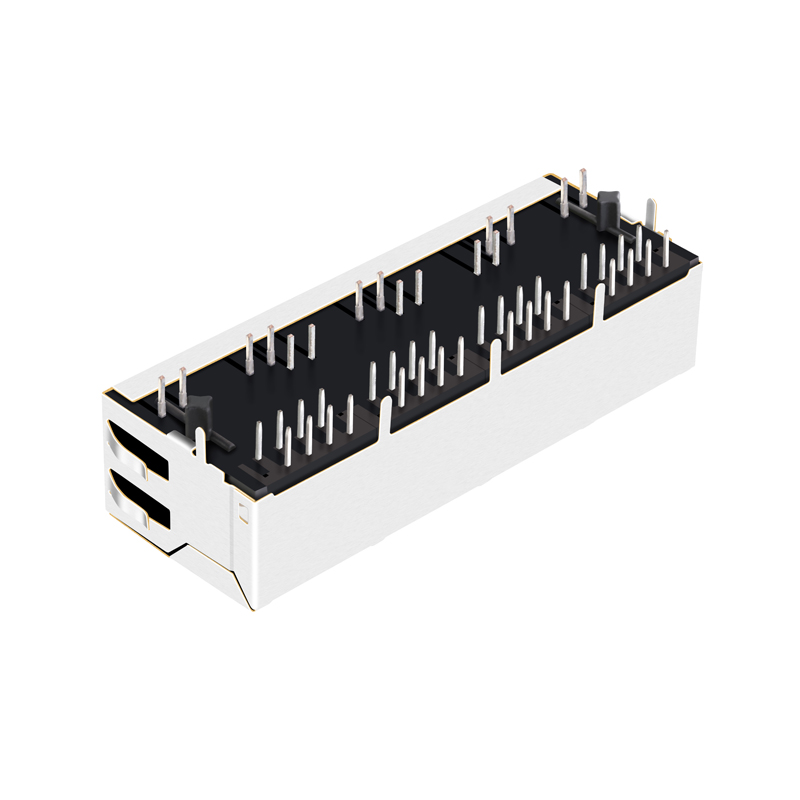

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

Networking Component Illustration 1
Networking Component Illustration 2
📋 Specification
Item Value
LINK-PP Part Number LPJ46404AENL
Pulse Part Number JXD0-4005NL / JX80-0033NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 1x4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Technical Drawing Detail 1
Technical Drawing Detail 2
Technical Drawing Detail 3
Technical Drawing Detail 4
Technical Drawing Detail 5
Technical Drawing Detail 6
