JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Product Description

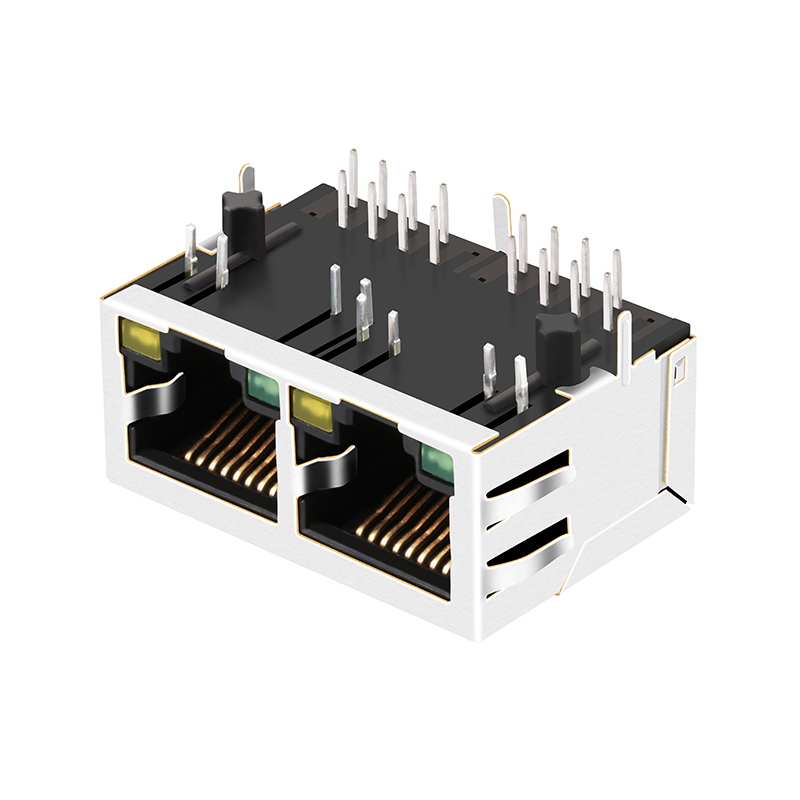

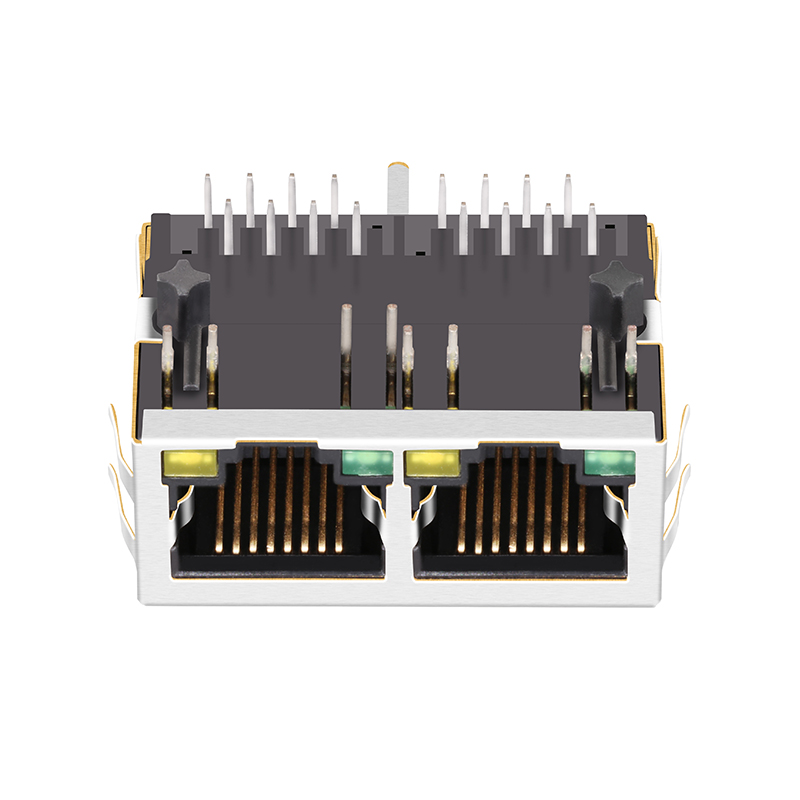

Product View 1
Product View 2
Specifications
Item Value
Part Number LPJ26404AENL
Cross Reference JXD0-2005NL / JXR8-1001NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Technical Drawing 1
Technical Drawing 2
Technical Specification Sheet 1
Technical Specification Sheet 2
Dimension Diagram
Schematic Diagram
