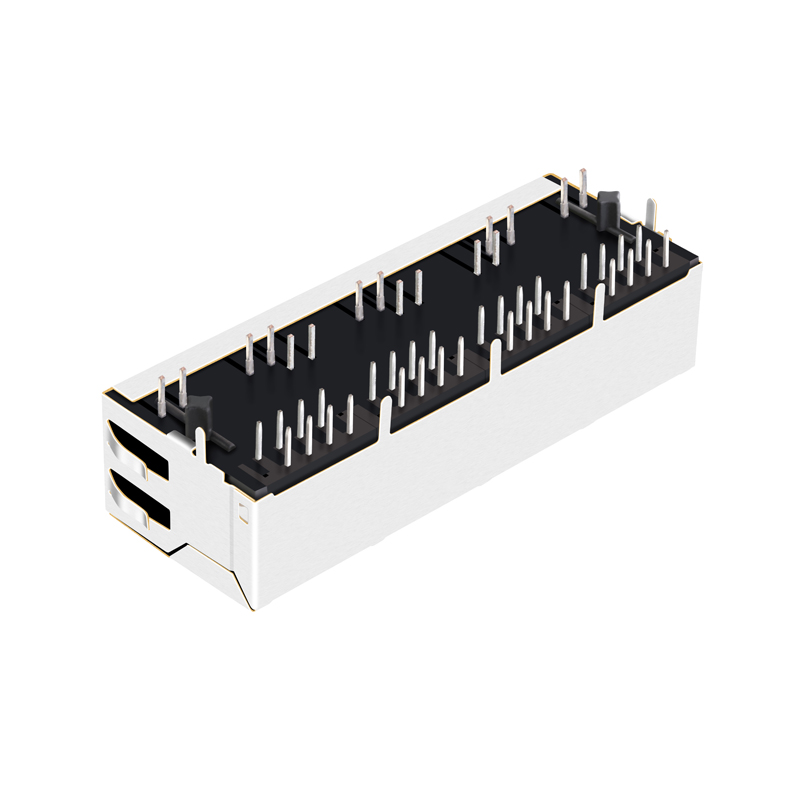

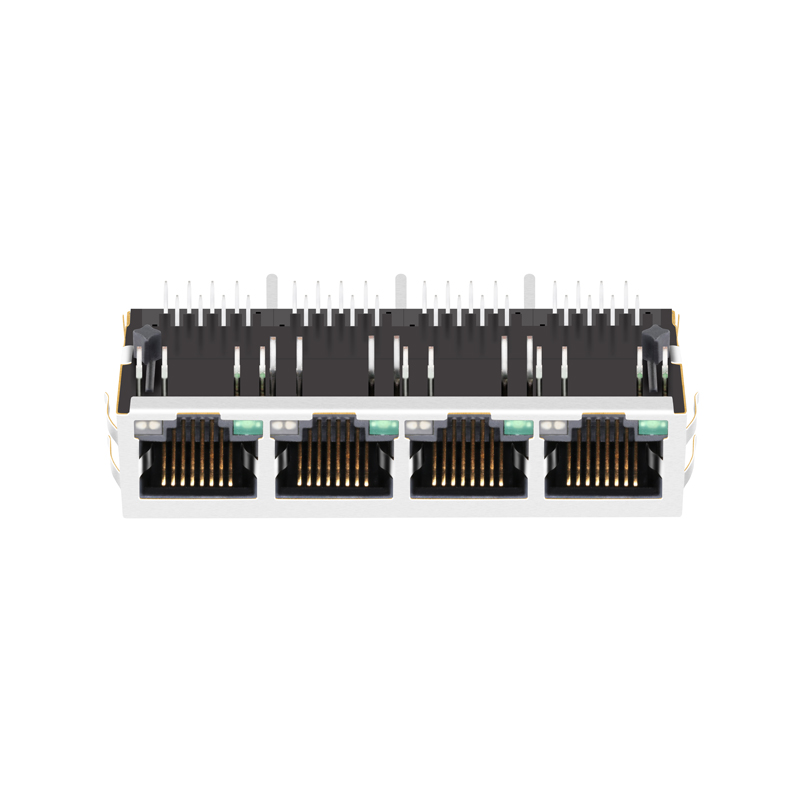

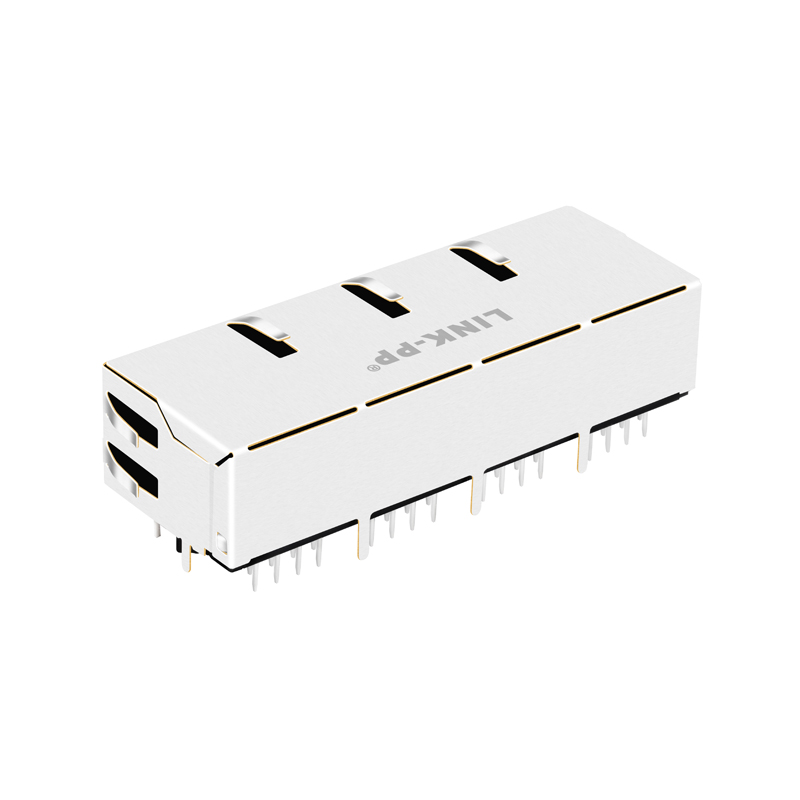

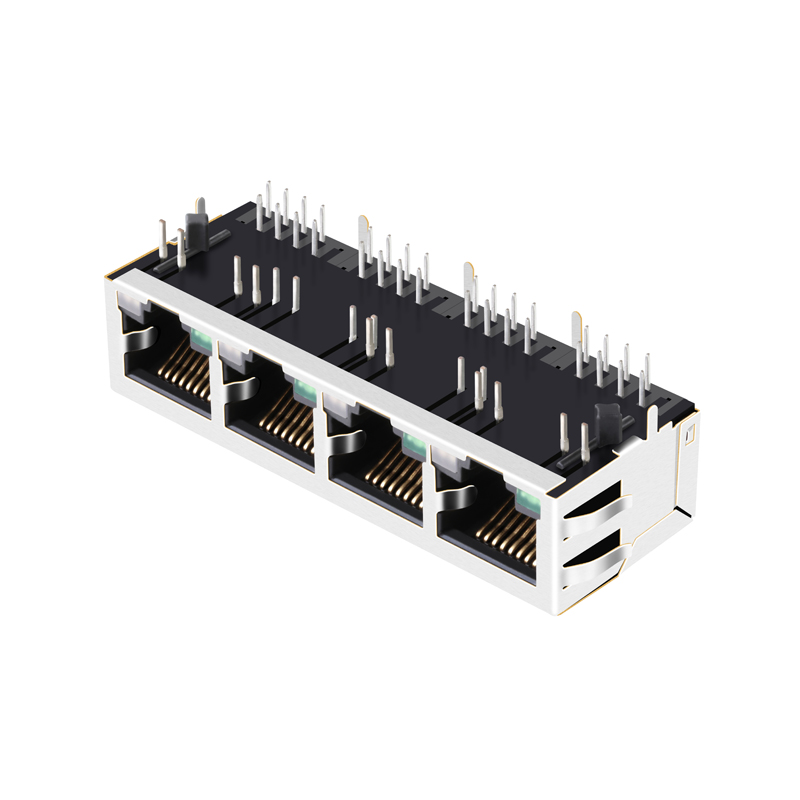

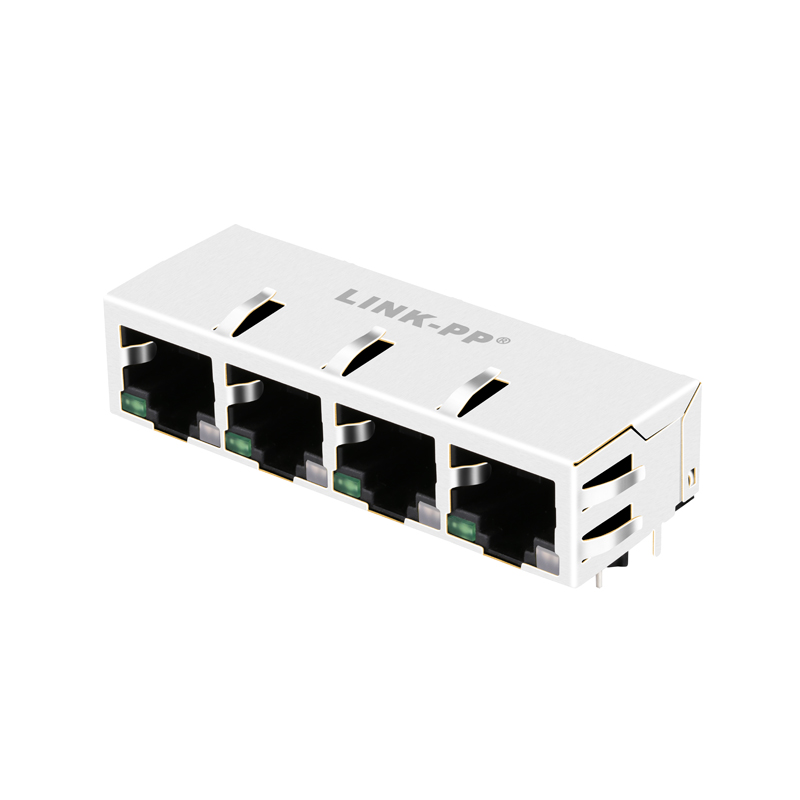

0826-1G4L-43M-F RJ45 Connector Magjack 1000 Base-T 1X4 RJ45

Product Description

RJ45 Connector Magjack 1000 Base-T 1X4 RJ45
0826-1G4L-43M-F RJ45 Connector Magjack 1000 Base-T 1X4 RJ45
Products Description
Item RJ45 Female Connector
Compatible With 0826-1G4L-43M-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x4 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
RJ45 Connector Magjack Structure
RJ45 Connector Port Options
Connector Development Details
Networking Equipment Application
RJ45 Module Quality Check
Standard Testing Equipment
Manufacturing Specifications
Industrial LAN Transformers
RJ45 Port Detail View
Company Profile
Established in 1997, our manufacturing facility is a professional designer and manufacturer of magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Production Facility Showroom
Automated Manufacturing Line
Quality Management System
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and we have been a trusted partner for major global brands for many years.
