Home > Multi Port RJ45 Connector > Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

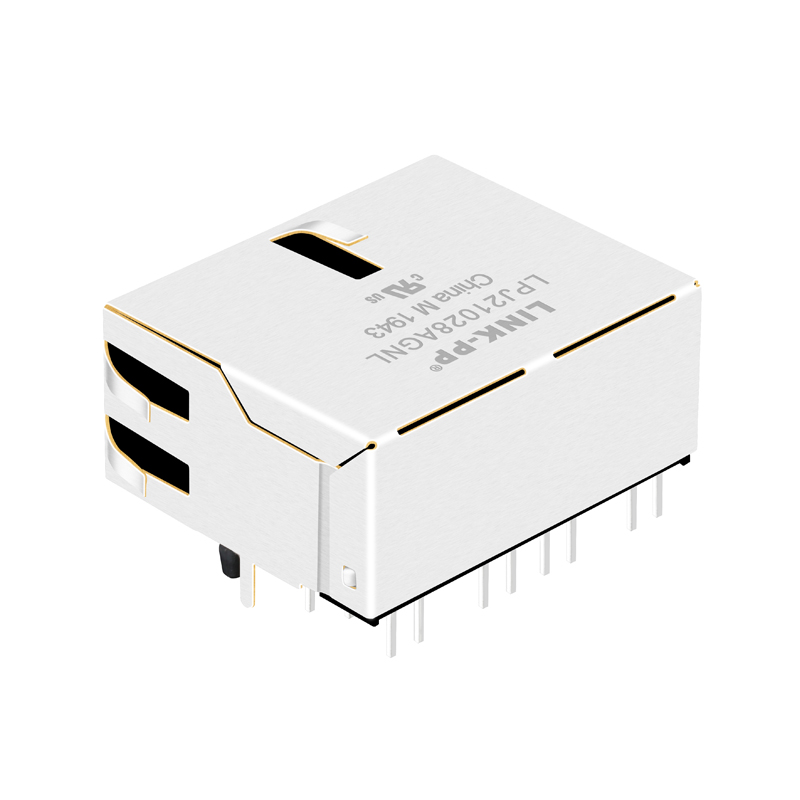

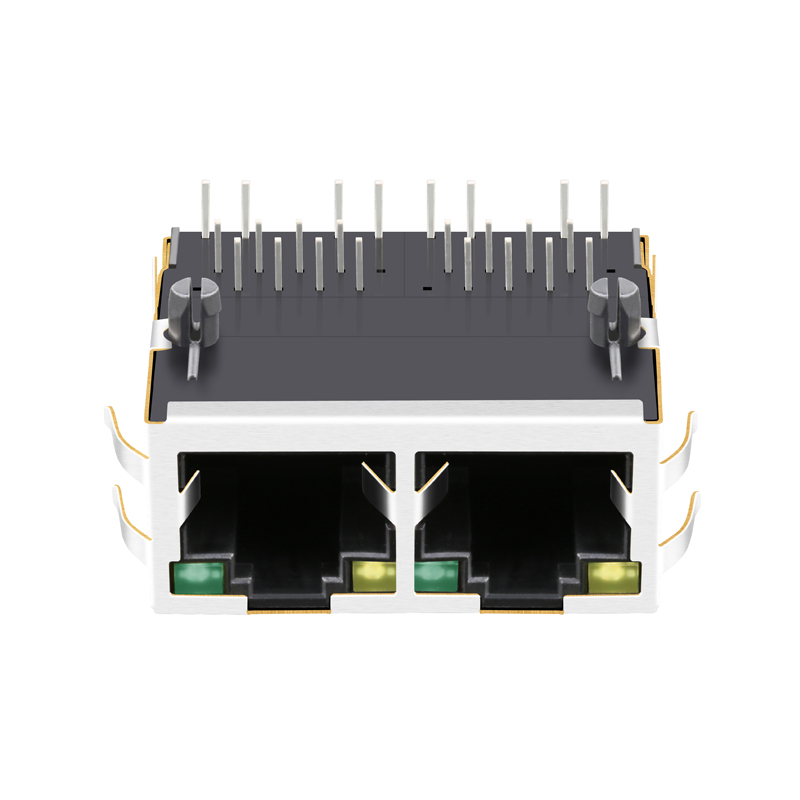

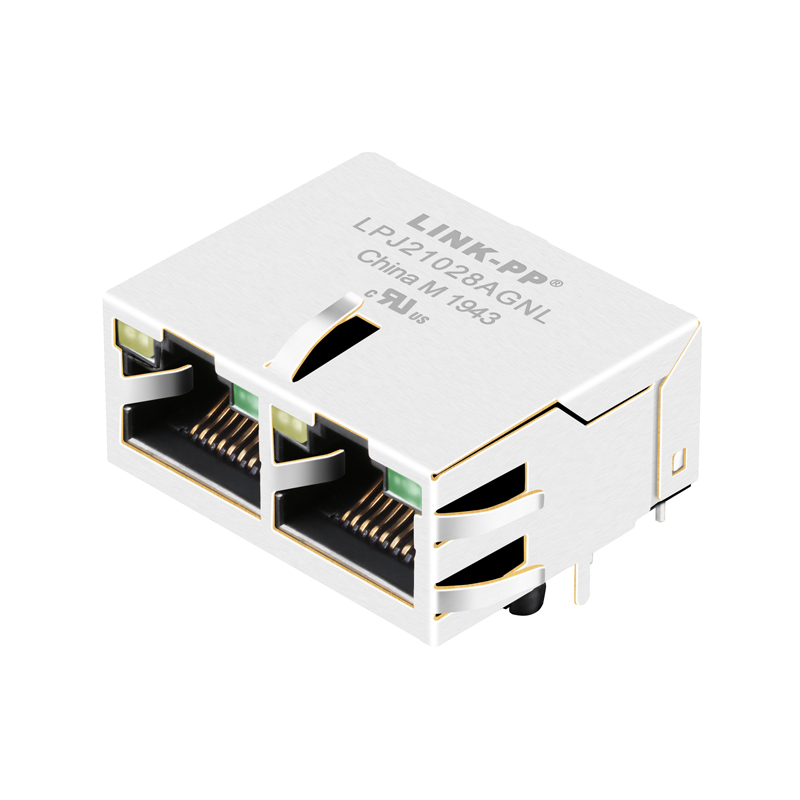

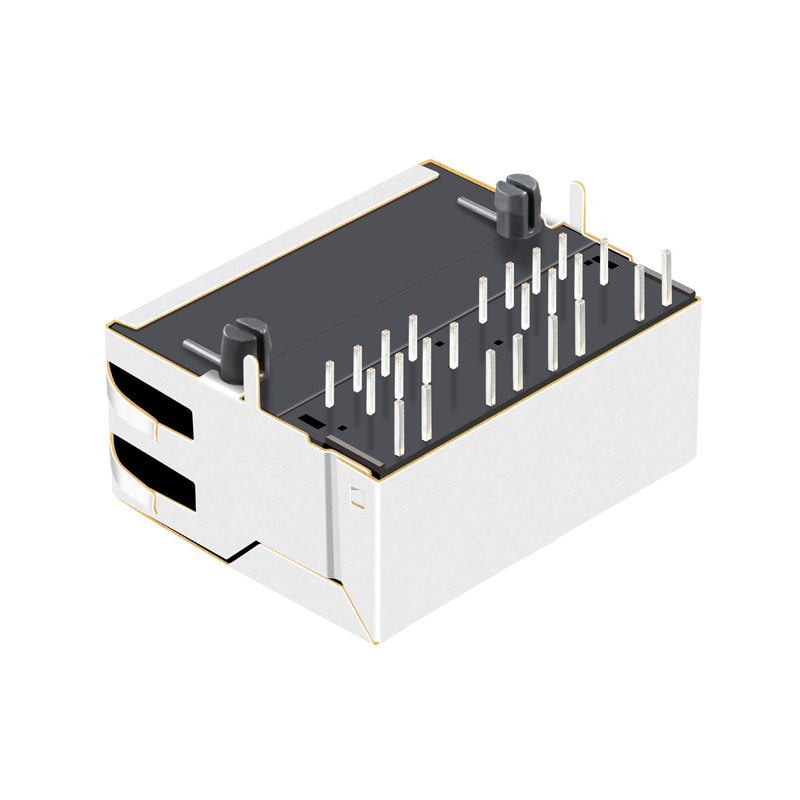

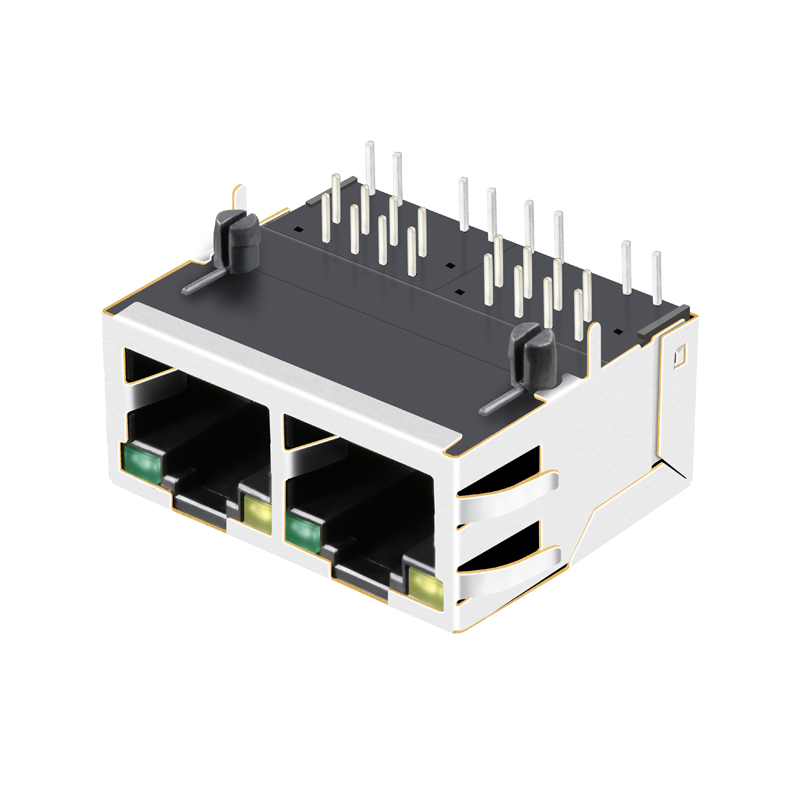

Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
1 / 5
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

Send Inquiry

Product Description

Ethernet RJ45 Modular Jack Overview
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

Products Description

Item RJ45 Female Connector
Part Number LPJ21028AGNL
Compatible With RT2-14FB4K1A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x2 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Diagram
★ Products Categories Overview
Product Categories Grid
Product Details 1 Product Details 2 Product Details 3
Product Details 4 Product Details 5 Product Details 6
Product Details 7

Company Profile

Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Company Facility 1 Company Facility 2 Company Facility 3

FAQ

1Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs will be covered by the buyer.
3What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
4What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5Can you accept OEM/ODM orders?
Yes, please send your requirements to us so we can proceed with a detailed discussion.
6What is your advantage?
We have 19 years of professional production experience and have partnered with major industry leaders like Intel and Jabil for many years.
