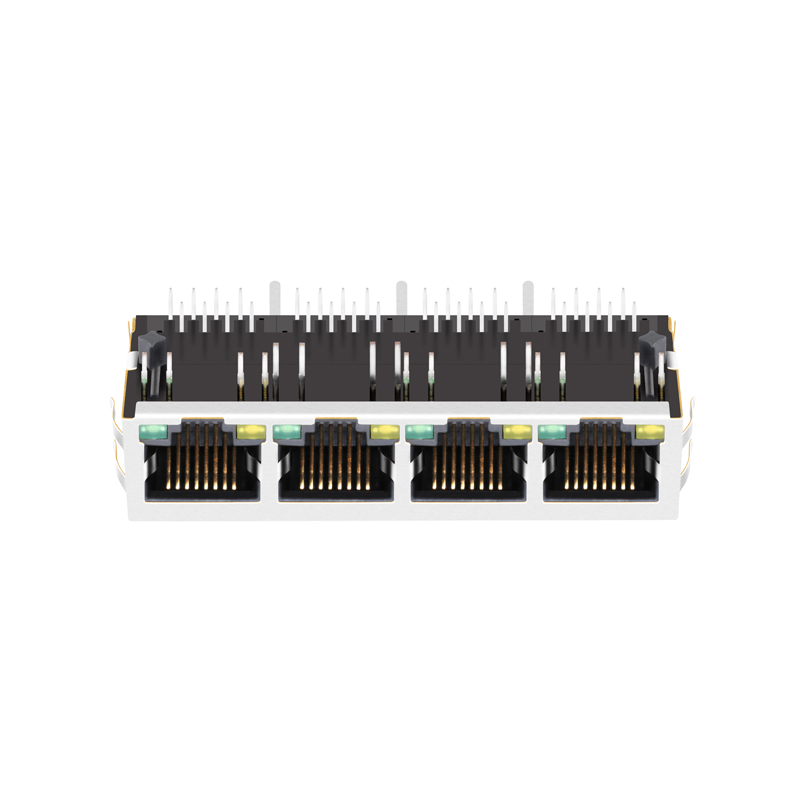

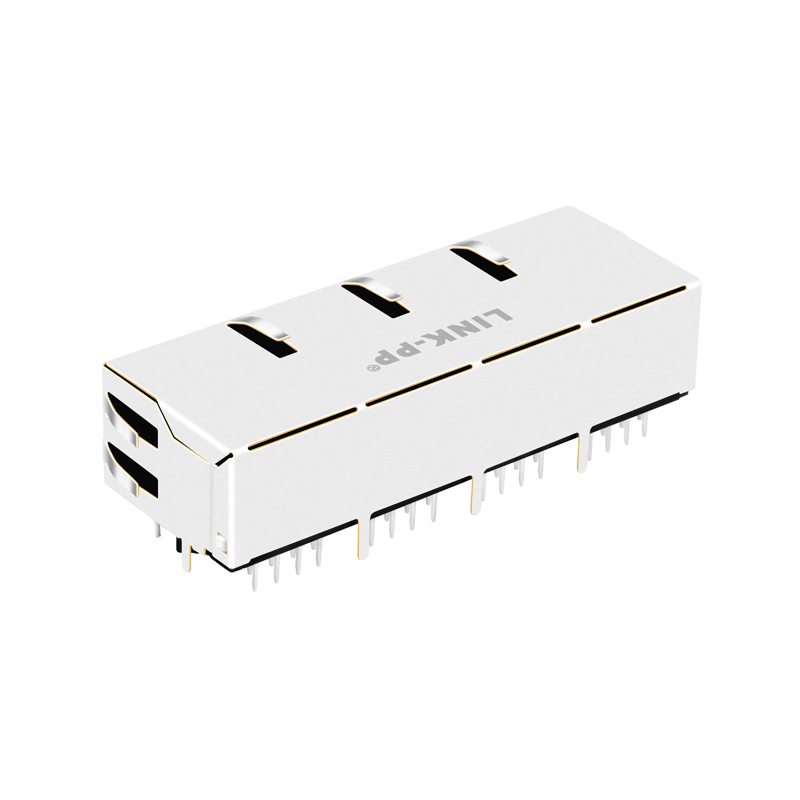

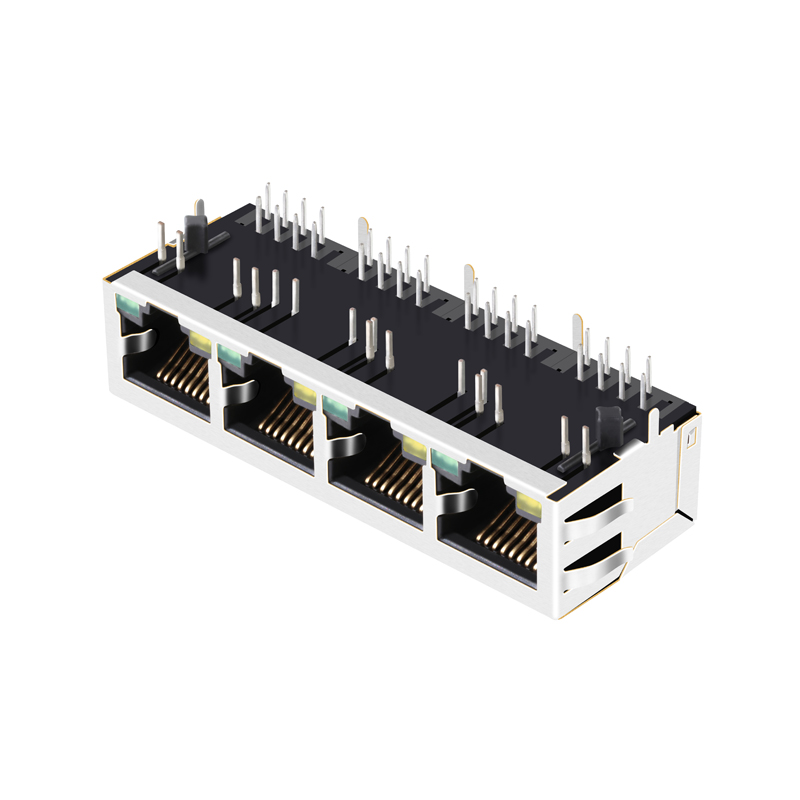

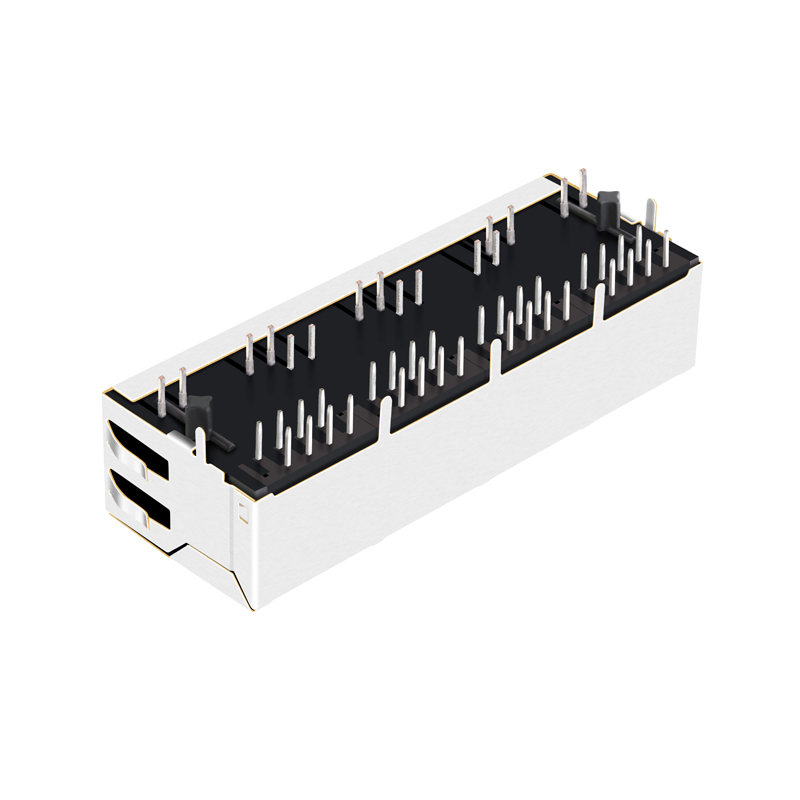

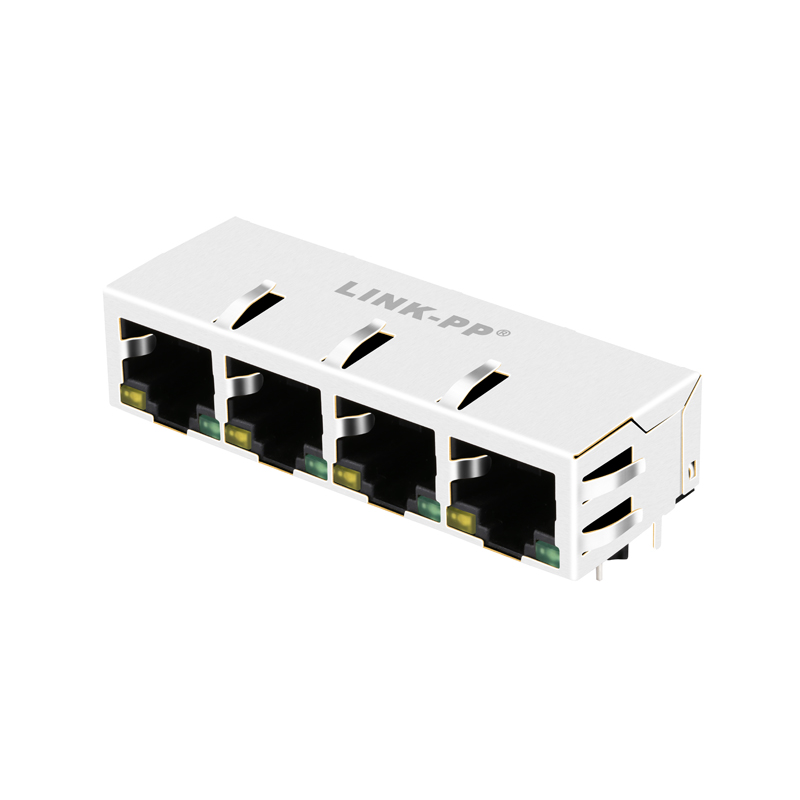

China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
1 / 5
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors

China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors

Send Inquiry

Product Description

RJ45 Connector and Lan Transformer Product Display
China Supplier J1N-0003NL Female Multiple Port RJ45 Connectors
Products Description
Item RJ45 Female Connector
Compatible With J1N-0003NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Female Multiple Port RJ45 Connector Front View
Comprehensive RJ45 Connector Solutions
Different RJ45 Connector Models Overview
Technical Schematics & Dimensions
RJ45 Connector Engineering Drawing
RJ45 Electrical Circuit Diagram
Mechanical Dimensions Layout
Pin Assignment Specification Sheet
Customer Support and Custom Services
Quality Inspection Standard
Professional Testing Instruments
Company Profile
Established in 1997, our facility is a professional designer and manufacturer of magnetic telecom and networking components. We provide an extensive line of state-of-the-art catalog products as well as strong custom design capabilities.
As a global supplier of magnetic telecom and networking components, we serve OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Manufacturing Plant Exterior
Automated Production Assembly Line
Quality Testing Laboratory
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping cost needs to be covered by the customer.
3. What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically take 15 to 30 days.
4. What after-sales service do you offer?
We offer a one-year warranty period and provide 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM requirements. Please send us your specifications so we can discuss the details.
6. What is your manufacturing advantage?
We possess over 19 years of professional production experience and maintain long-term partnerships with leading global technology brands.
