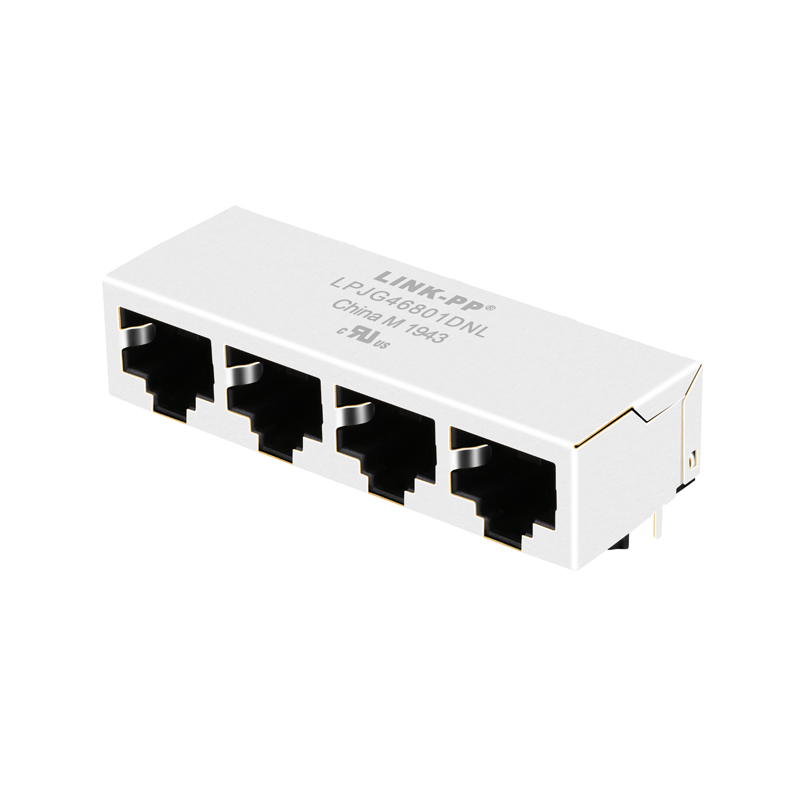

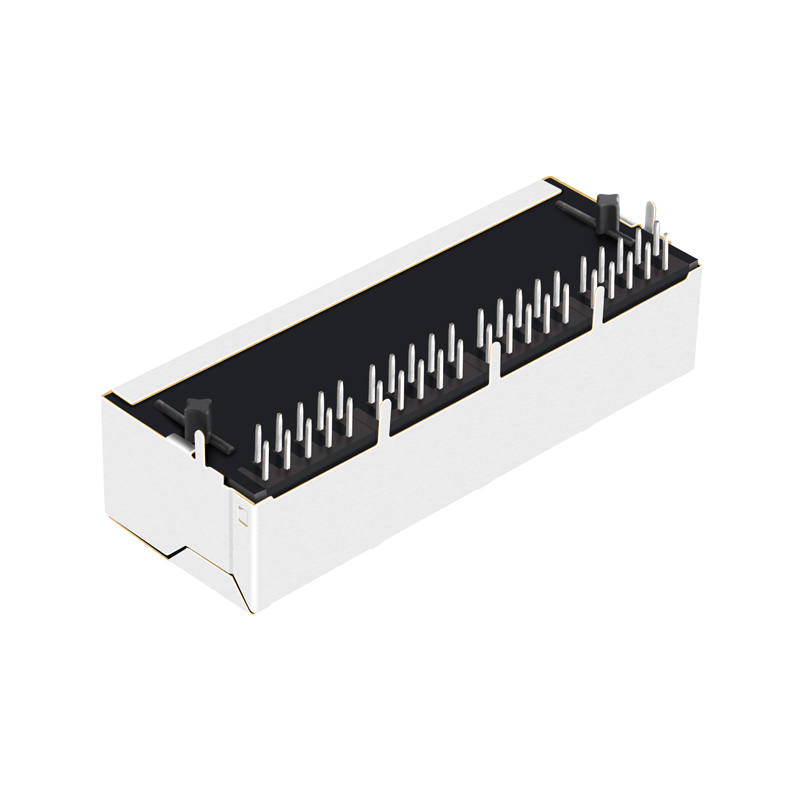

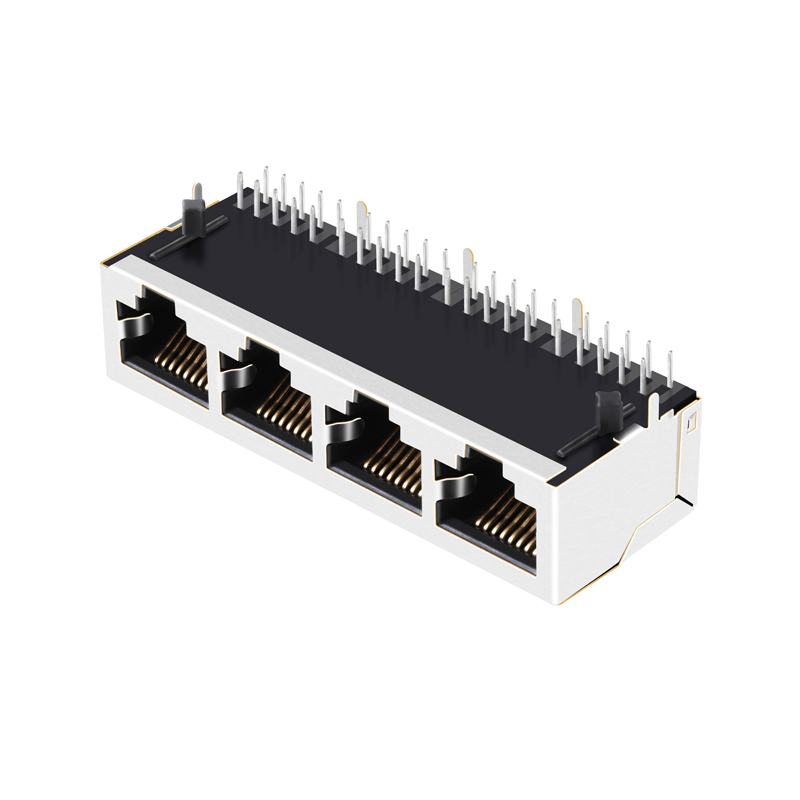

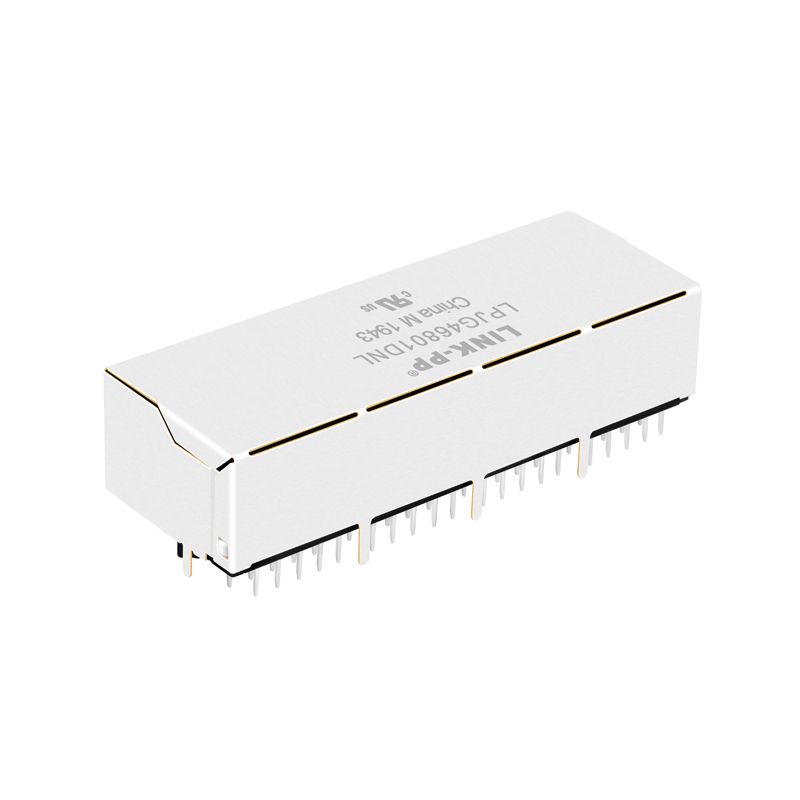

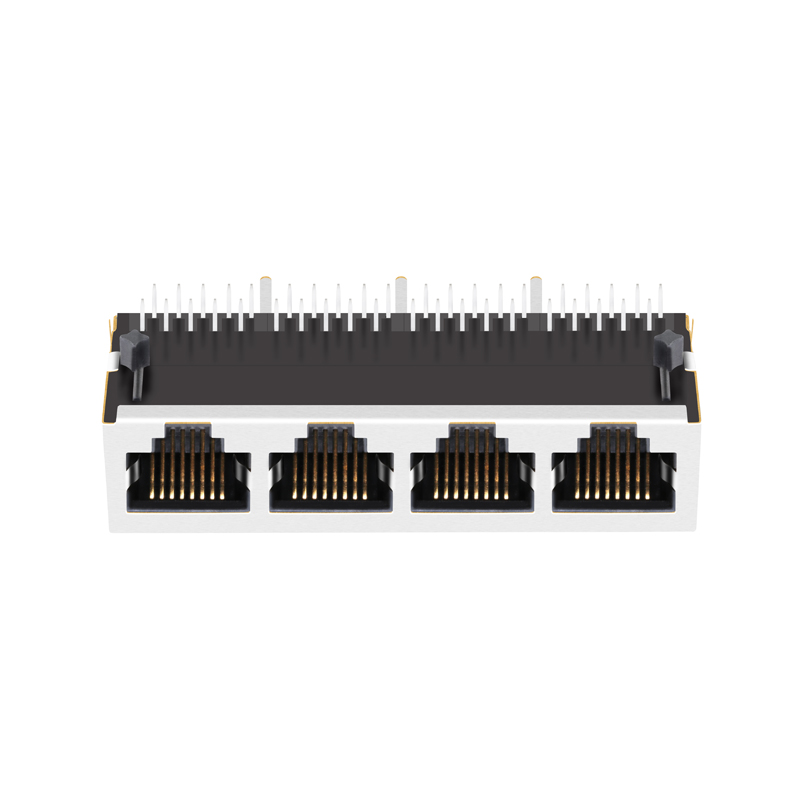

64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without Led

Product Description

Ethernet RJ45 Connector Overview
64F-1301NW2NL 1x4 Port Quad Ports 10/100/1000 Base-t Female Ethernet RJ45 Connector Without LED
⚙️ Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x4 Port
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C to 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Diagram Details
📁 Product Categories
RJ45 Connector Range Overview
🔍 Specifications & Testing
Electrical Specifications Diagram
Mechanical Dimensions Diagram
PCB Layout Footprint
Pin Assignment Info
Automated Testing Interface
Packaging Dimensions
Material Certificate Specification
🏢 Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Manufacturing Workshop
Quality Inspection Center
Warehouse and Inventory
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
3. What is your delivery time?
Ready-to-ship items are dispatched quickly from stock, and mass production orders take approximately 15-30 days.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can begin detailed custom solutions discussions.
6. What is your advantage?
We bring over 19 years of professional production experience and have partnered with major global technology leaders for many years.
