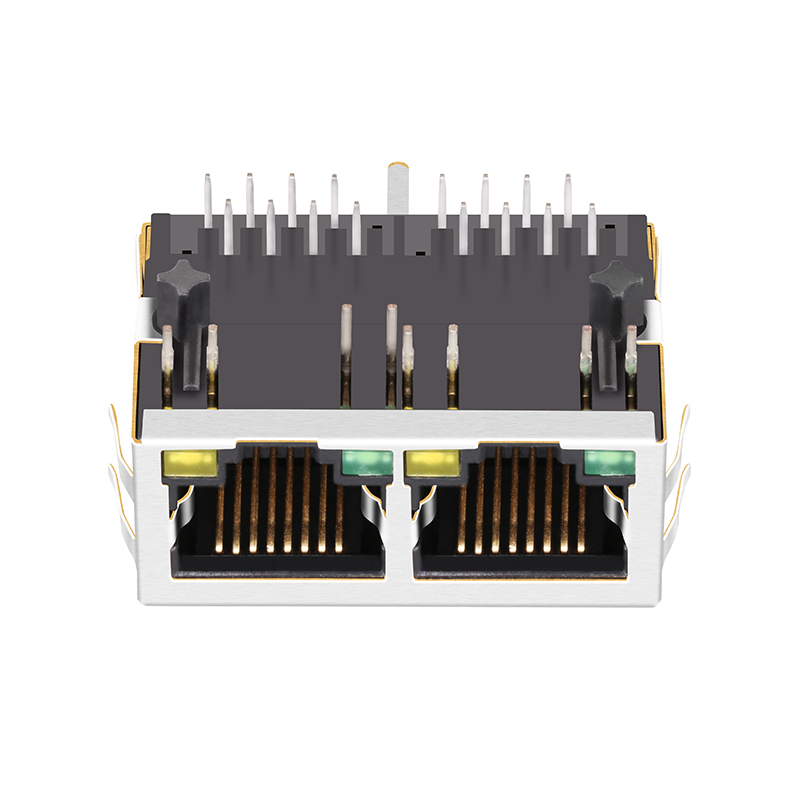

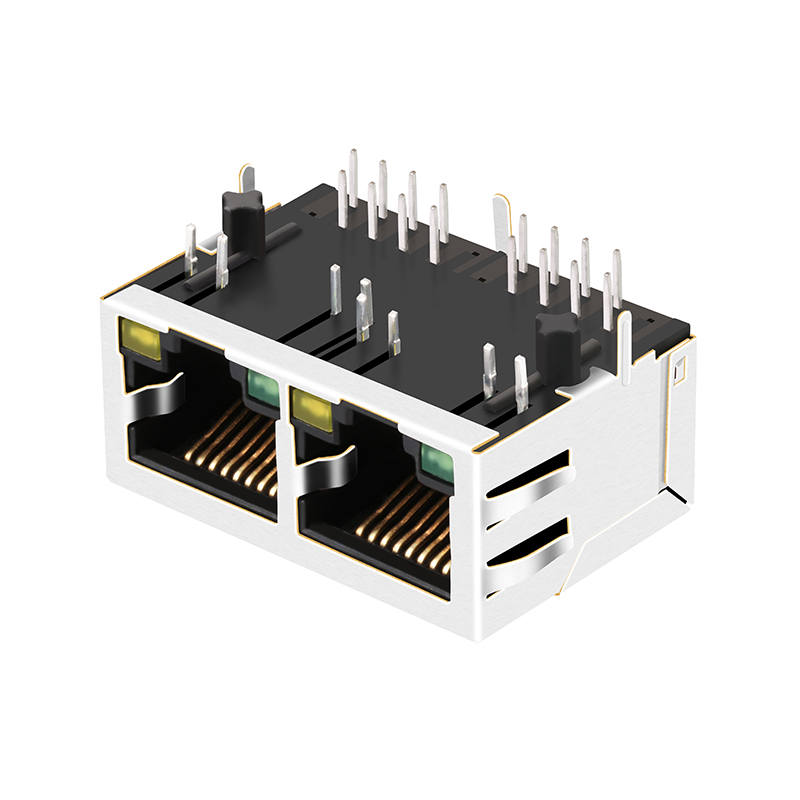

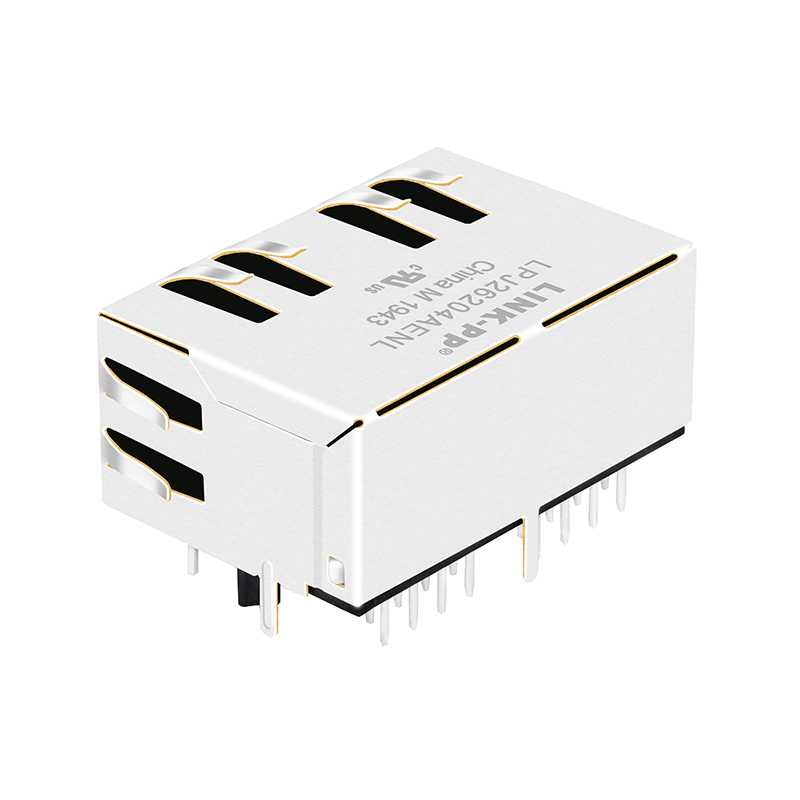

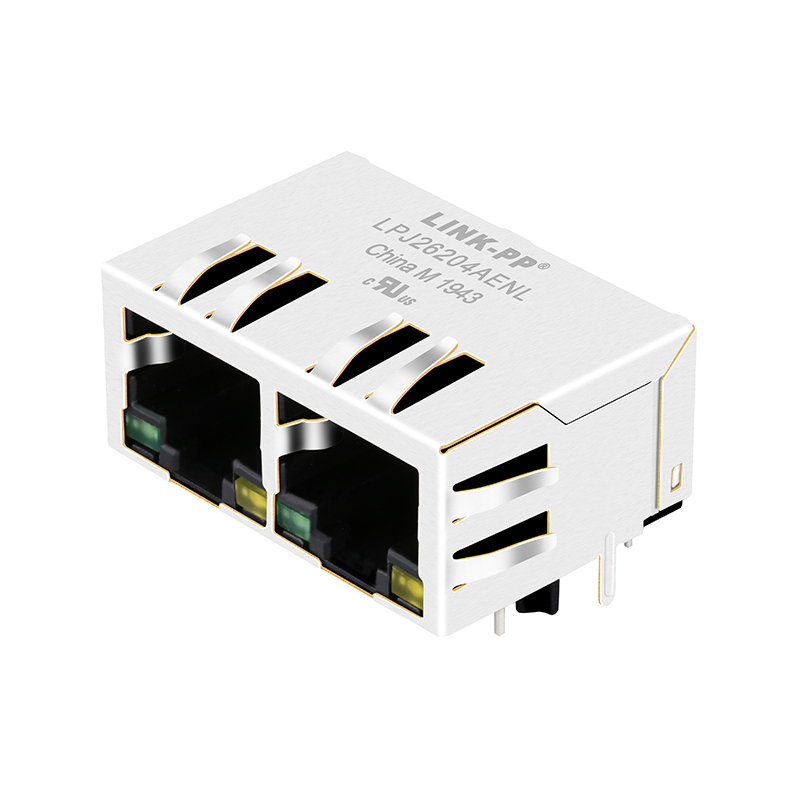

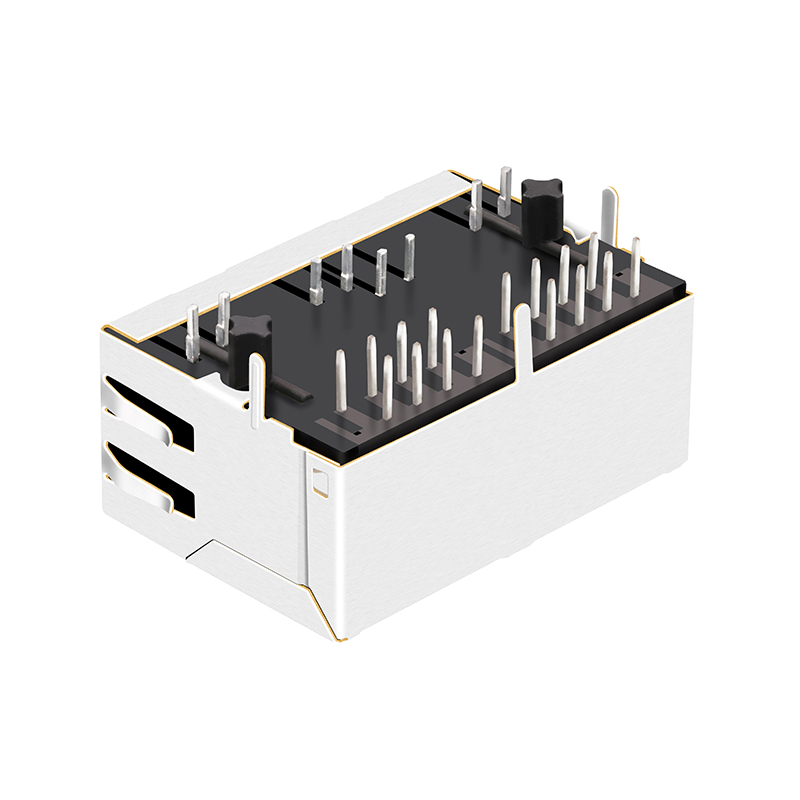

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
1 / 5
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Send Inquiry

Product Description

Product Description
Product Feature 1
Product Feature 2
Product Feature 3
Specification
Item Value
Model Number LPJ26204AENL
Part Status Active
Connector Type RJ45
Applications-Lan 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green / Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery
The Package Information
Package Tray
Carton Size 37 * 30 * 30 cm
G.W. / Carton 9 kg
Qty / Carton 600 pcs
SPQ 30 pcs
N.W / pcs 0.015 kg
Packaging Detail

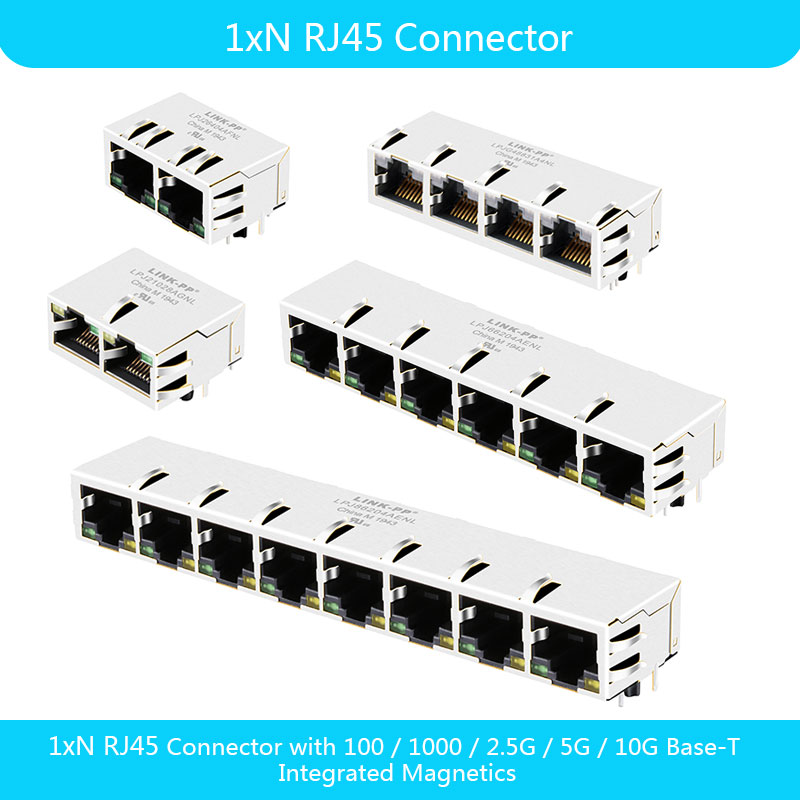

Product Performance Chart
10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector

Applications & Features:

  • Suitable for industrial temperatures from -40 °C up to +85 °C
  • Compatible with Industrial Ethernet systems like EtherCAT or Profinet
  • Compliant with most ICs for Ethernet applications such as Microchip, Broadcom, Marvell
  • Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications
Company Profile
Factory Office
Production Line
Manufacturing Area
Testing Equipment
Quality Inspection
Certification Showcase
Warehouse Operations
Frequently Asked Questions
Who are we?
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We operate advanced manufacturing facilities and testing equipment. Established in 1997, our large production capacity ensures prompt delivery and comprehensive technical support. Our products are widely used in networking and communication equipment such as Hubs, Switches, Routers, Mainboards, IP Phones, and Modems.
How do you guarantee quality?
Quality is guaranteed through a rigorous process: we always provide a pre-production sample before starting mass production, and a final inspection is performed on all units prior to shipment.
What products can we buy from you?
We offer high-quality RJ45 Magnetic Connectors, LAN Transformers, Modular Jacks, and RJ11 Connectors.
Why should we choose you over other suppliers?
We offer over 19 years of deep specialization in RJ45 connectors and LAN transformers. We hold certifications from SGS, ISO9001:2008, UL, REACH, and CE. With a substantial workforce and robust weekly production capacity, we are a trusted supply partner for major global technology brands.
What delivery and payment services do you support?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF.
Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
Do you offer custom design (OEM/ODM) support?
Yes, we specialize in providing tailored complete solutions for magnetic and telecom components. Our dedicated engineering team is ready to provide strong technical support and customize products to meet your exact specifications.
